TRACE® 3D Plus Load Design

TRACE® 3D Plus Load Design

TRACE® 3D Plus Load Design

TRACE® 3D Plus Load Design is the next evolution of the globally used and trusted TRACE® 700 Load Design software. This 3D design platform makes accurately sizing your HVAC systems faster and easier at any desired level of fidelity. We've taken our 50 years of HVAC systems design and software simulation knowledge and combined it with the U.S. Department of Energy's state-of-the-art EnergyPlus® simulation engine. The result is a platform that makes right sizing HVAC systems intuitive and visually dynamic with an easy to understand workflow that's less error prone. Try the new TRACE 3D Plus platform today and get accurate sizing results in a fraction of the time.

Order Software
See Available Downloads

The latest Version 5 software is here!

Thanks to customer feedback, we continue to make TRACE® 3D Plus better, faster, easier than ever before in the latest Version 5 update. Experience speed and accuracy improvements, the return of valued assets from previous iterations, and our continued focus on sustainability features to support your project’s decarbonization and electrification goals.

Visit the Download section below to begin the V5.00.123 update, including:

New! Load / Airflow Summary Report

New! Spreadsheet view for Windows

New! Ability to size Dedicated Outdoor Air Systems based on latent load

New! Silent installation option

New! Ability to export building geometry to LightStanza for daylighting analysis

New! Importable ASHRAE® Standard 62.1 2016 and 2019 ventilation libraries

Added Support for minimum airflow requirements for system level ventilation

Expanded heat recovery capabilities using double bundle condensers or plate and frame heat exchangers

Enhanced Plant Block Calculations

Enhanced air boundary methodology for zone air walls

Improved room air transfer with airflow auto-balancing using infiltration

Improved geometry merging, allowing users to maintain complex roof geometry when merging spaces

Improved gbXML function

- Limited Time Offers -

15% Discount on New TRACE 3D Plus Licenses

Available now through December 16th, take advantage of a 15% off discount when you purchase a new TRACE 3D Plus license (the offer does not apply to license renewals).

Use the codes below at check-out:

Load Design - 3DPLD15%2022
Full Version - 3DP15%2022

------------------------------------

FREE 30-Day Trial from LightStanza

For a limited time, Trane TRACE 3D Plus license holders can benefit from a 30-Day special access to the LightStanza platform to experience its full features and capabilities. Use the link below to learn more and sign up:

https://app.lightstanza.com/signup/trane

Upgrade your software

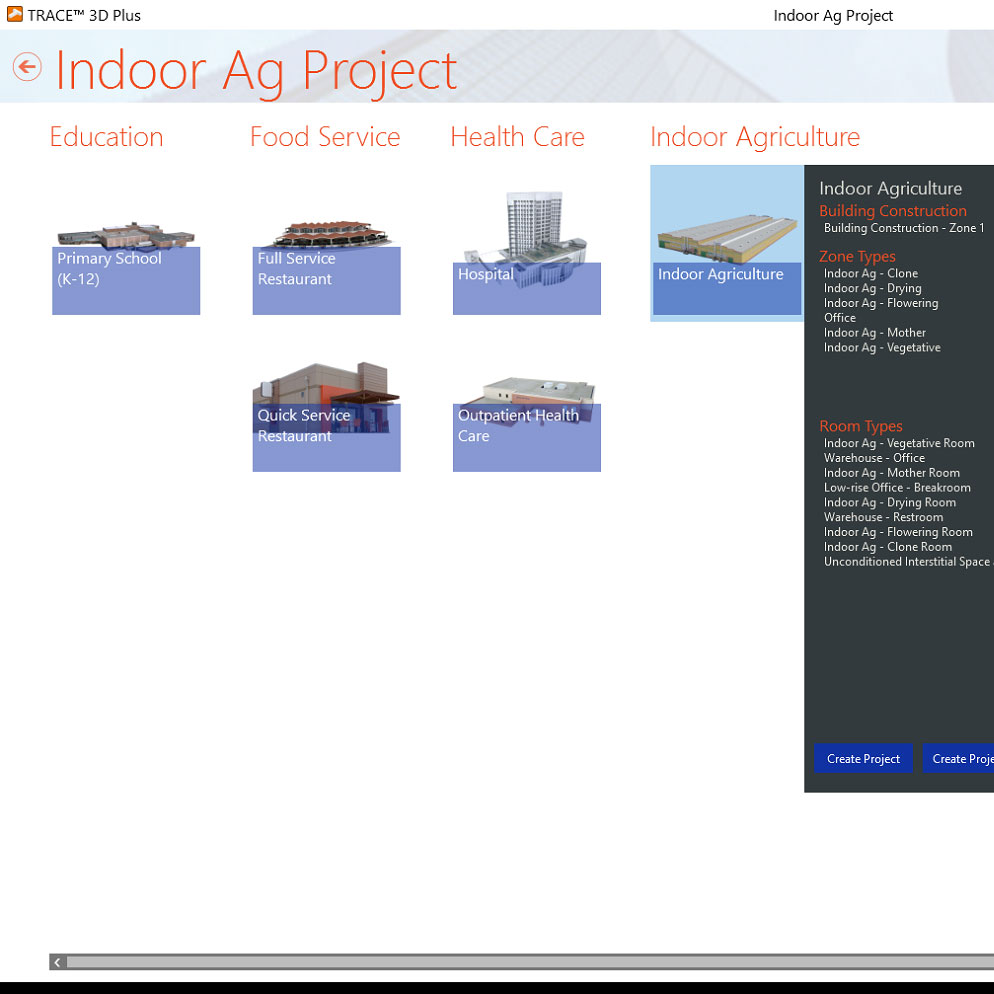

Generate Design Models Quickly with Full Building Templates

Enjoy the same intuitive ease and intelligent defaults that made TRACE 700 so popular while the schematically configurable system/plant layout and control provides a deeper level of customization to match real world design.

Save even more time on every project with the extended library and template architecture to include dozens of full building templates that make getting quick and highly accurate results for most commercial building types 30 to 40% faster than its predecessor.

Order TRACE 3D Plus

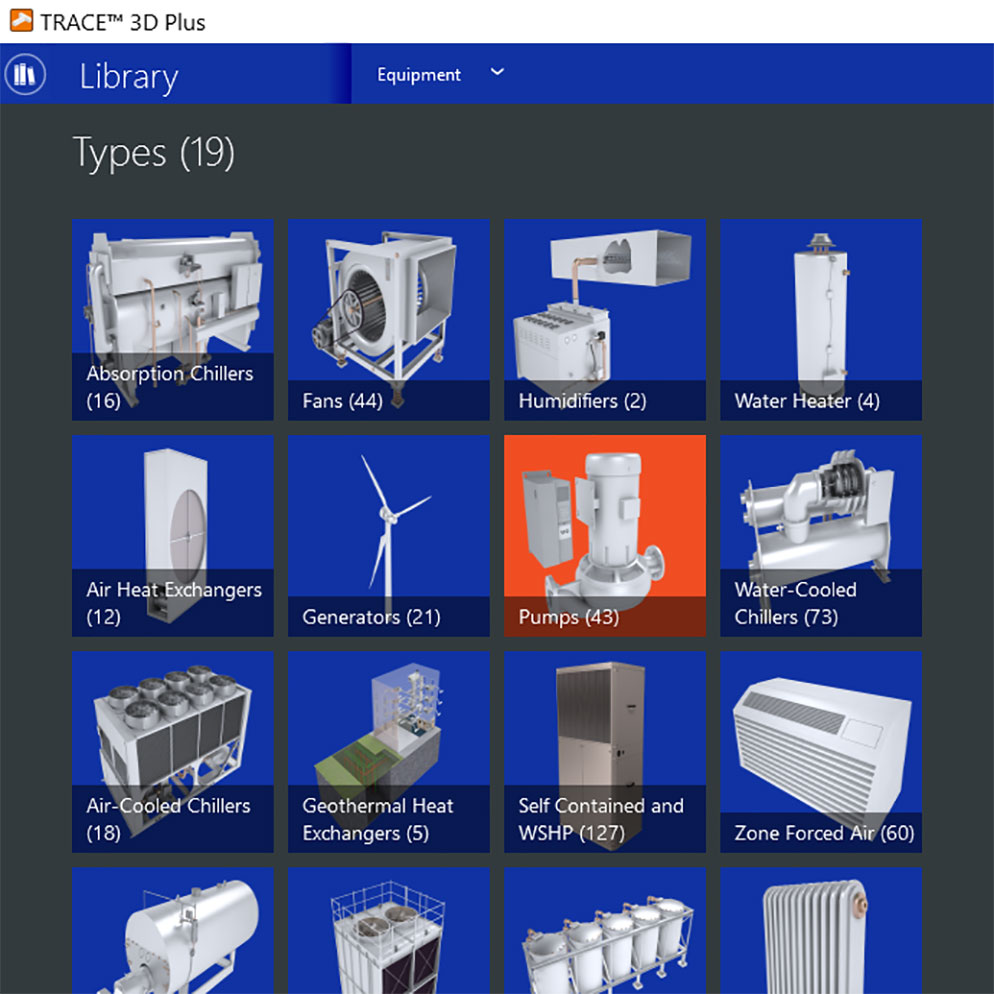

Optimize Design Time with Expanded Asset Library

The thousands of built-in libraries and templates were created by researching hundreds of industry standards, studies completed by national labs or other trusted industry resources. The 3D building elements are infused throughout the interface with the full breadth of the libraries and templates for an unparalleled design experience that can be visually verified.

And the best part is that all load design models are completely scalable and seamless should the need arise for an upgrade to the full energy or economic analysis platform!

View Digital Brochure

Push your Designs Beyond the Industry Standard

TRACE 3D Plus does more than just spit out ASHRAE Heat Balance toolbox load calculations. TRACE integrates Trane’s vast industry experience and considers worst case design of every component in the building model to give the modeler the ultimate control of all design considerations or factors of safety.

Whether modeling today’s sophisticated radiant designs, complex VRF configurations, or high performance VAV systems, TRACE 3D Plus will help guide the designer through the process.

View Digital Brochure

Lean on World Class Support Teams

TRACE 3D Plus is sold as a Software as a Service (SaaS) package with annual license renewals. The world-class support that you have come to rely on is now more robust and offers even more ways to interact, including a searchable online knowledge database and in-depth online training. As always, it is backed by a team of support engineers to help you migrate to this new software program.

Connect with C.D.S. Support

What our customers are saying...

  • I've worked with C.D.S. for decades now. They are consistently knowledgeable and have always provided great support. Keep up the good work guys! It affects my perception of Trane as a complete company.

    Liesl H.

  • Honestly, the most amazing customer support ever! Everyone should be studying how CDS gets things done. It truly is incredible and much appreciated.

    Mark O.

  • Really great people and always super helpful. I've been using this software package since 2003 and have always received excellent support and in short order.

    Ryan W.

  • My agent was very helpful and resolved my problem quickly. I've been waiting on my in-house tech support for over a week. Thank you for making it so easy and getting me back to work!

    John B.

Looking for Convenient, Technical Training Information?

For Design & Analysis Software Training

Explore all virtual and in-person training solutions delivered by C.D.S. [Link]

For all other Education & Training

Find articles, application manuals and training on a variety of topics from Trane. [Link]

Beginning in 2023, new extended renewal subscription options will be available for the TRACE 700 family of products and Trane Design Tools. Learn more about your software End of Service and Support options.
View Software Support Lifecycle
