XR16

XR16
ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

What's Included

  • Coil
    The coil, also known as an indoor coil or evaporator coil, is the part of your air conditioner or heat pump that regulates the temperature in your house all year long. The coil does this by absorbing the moisture and heat in your home. There can be no cold air without the evaporator coil.
    Included
  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included
SEER:
The higher the SEER, the less fuel you’ll need to keep your home comfortable, the less you’ll spend on energy, and the lower your carbon footprint will be.
Up to 17
Nominal Sound:
The average sound level in decibels. The higher the number, the louder the unit. For example, a vacuum cleaner = 70.
71
Cooling Stages
Units with variable cooling stages have more precise temperature control and operate more efficiently than single stage units.
ONE
Energy Savings:
Yearly energy savings based on the ratings of a matched system. The majority of systems installed prior to 2006 are 10 SEER or lower.
54%
SAVE 54%
Save an average of 54 on energy costs  with this unit

XR16 DESCRIPTION

Home Air Conditioning

XR16

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

What's Included

  • Coil
    The coil, also known as an indoor coil or evaporator coil, is the part of your air conditioner or heat pump that regulates the temperature in your house all year long. The coil does this by absorbing the moisture and heat in your home. There can be no cold air without the evaporator coil.
    Included
  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

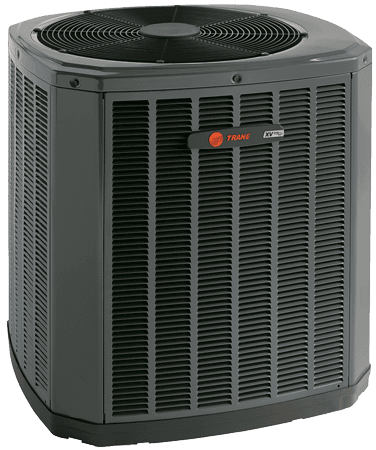

Working as part of your home HVAC system, the XR16 home air conditioning unit comes with the reliability you’ve come to expect from Trane and the energy efficiency you deserve. This central air system’s design ensures that your family has superior comfort year round.

More Details

energy star logo
ENERGY STAR® Qualified*

Overview

-

Efficient performance

The XR16 home air conditioning system has a SEER rating of up to 17.00, making it an excellent choice for home comfort and for earning energy-efficiency tax credits.

Durable and economical

Increased efficiency may substantially lower your home cooling costs. Materials for all central air conditioning systems are tested again and again for long-lasting performance and durability.

Cleaner, healthier indoor air

Add Trane CleanEffects™ Air Cleaner to your home air conditioning system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Product Brochure

Specifications

-

XR16 Central Air Systems (R-410A refrigerant)

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TTR6018J 18,000 1.5 29 33 30
4TTR6024J 24,000 2 29 33 30
4TTR6030J 30,000 2.5 37 33 30
4TTR6036J 36,000 3 37 37 34
4TTR6042J 42,000 3.5 45 37 34
4TTR6048J 47,000 4 45 37 34
4TTR6049J 48,000 4 45 37 34
4TTR6060J 57,500 5 45 37 34
4TTR6061J 60,000 5 45 37 34

XR16 Central Air Conditioning Systems

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TTR6018B 18,000 1.5 29 33 30
4TTR6024B 24,000 2 29 33 30
4TTR6030B 30,000 2.5 33 37 34
4TTR6036B 36,000 3 37 37 34
4TTR6042B 42,000 3.5 41 37 34
4TTR6048B 48,000 4 45 37 34
4TTR6049B 48,000 4 45 37 34
4TTR6060B 60,000 5 45 37 34
4TTR6061B 60,000 5 45 37 34
4TTR6061C 57,500 5 45 37 34

Every Trane home air conditioning system is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The XR16 includes:

  • Climatuff™ compressor
  • Spine Fin™ outdoor coil
  • Upgraded fan motor
  • Full-side louvered panels protect your investment
  • Corrosion-resistant Weatherguard™ fasteners
  • Unique DuraTuff™ non-corrosive base pan
  • Quick-Sess cabinet with full coil protection
  • Sound insulator on the compressor (select models)

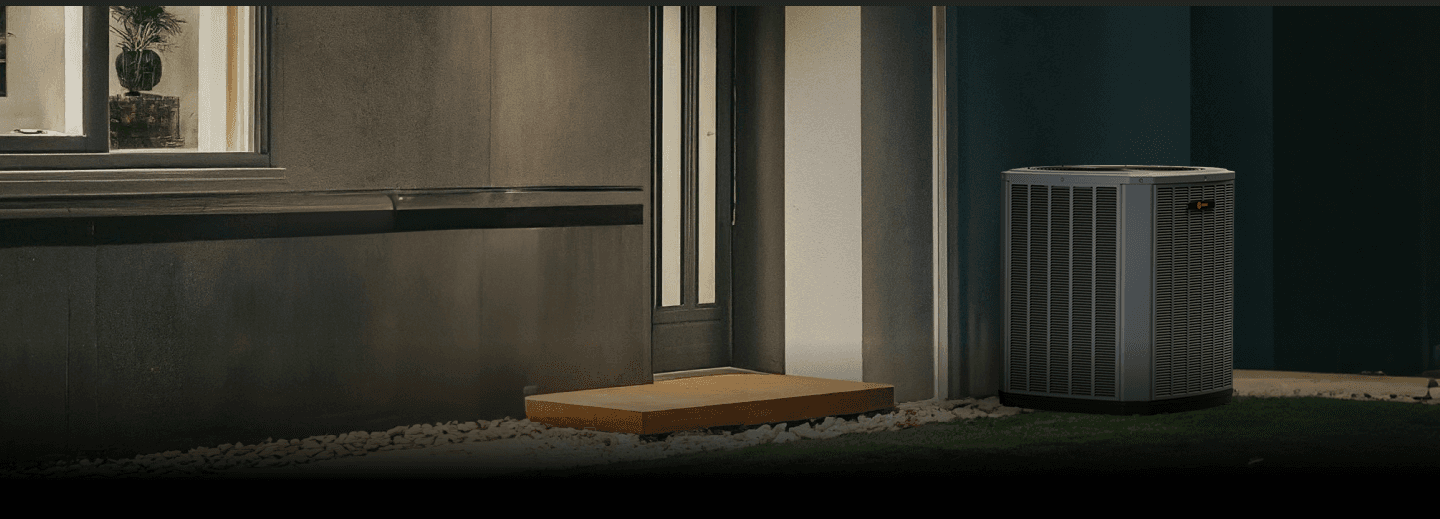

Air conditioner banner

Trane Warranty

Protect your XR16 with one of our top of the line warranties

View Warranty
The majority of systems installed prior to 2006 are 10 SEER or lower. Potential energy savings may vary depending on your lifestyle, system settings, equipment maintenance, local climate, home construction and installation of equipment and duct system.

Contact a local Trane Comfort Specialist™

WANT TO SAVE ON A NEW SYSTEM?
NEED EMERGENCY REPAIRS?

WE CAN HELP

Let us know how we can help and the top-rated Trane Comfort Specialist™ in your area will contact you shortly.

By pressing the “Submit” button, I consent to receive a phone call about products and services from a Trane Comfort Specialist™ at the phone number(s) provided. I understand these calls may be generated using automated technology and my consent does not imply or require that a purchase be made.
  • Weather for

    Charlotte

    92°

    Clear Sky

Still have questions?

Here's what your dealer can do for you

  • Custom evaluation
  • Local rebates
  • Expert repairs
  • Upfront pricing

†This product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details.

*PRICE RANGES

Price ranges shall apply to basic installation to include standard materials and service, which may vary by the type of system or unit selected. All price ranges are subject to adjustment based on the unique characteristics of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™, including the cost of mechanical permits that may be required by local and state law. Price ranges do not include any taxes, now or hereafter enacted. Taxes will be added by your Trane Comfort Specialist™ to the sales price to comply with local and federal tax law.

Basic installation varies slightly based on the type of system, unit or accessory purchased.

AC Furnace & Air Handler Split and Packaged Systems: Materials & Services - Install new condenser pad, an A/C whip, with electrical disconnect switch, either flush existing refrigerant line set or install new line sets (determined by placement in home); includes the removing and hauling away of the old system or unit, installing new system or unit by local code, installing new thermostat, reconnecting to existing ductwork.

Mini-Split Systems: Materials & Services: Install new condenser pad, electrical wiring, either flush existing refrigerant lineset or install new line sets (determined by placement in home) and a remote control; includes the removing and hauling away of the old system or unit, installing new system by local code, connect electrical to new unit.

Accessory installation: Materials & Services - electrical wiring; includes the removing and hauling away of the old system, installing new system by local code, connect electrical to new unit.

Standard Warranty: Standard Labor (One (1) Year XR Series, Two (2) Years XL/XV Series) & Parts Warranty (5 Year Unregistered or 10 Year Registered). Longer warranty terms are available. Please contact your independent Trane Comfort Specialist™ for details.
