TRANE® CHILLERS

The right chiller for the job

  • Sustainable

    Designed to help lower environmental impact with next-generation refrigerants, free cooling and heat recovery options. Our chillers minimize environmental impact and operational costs with incredible energy efficiency levels and low-sound-level operation.

  • Reliable

    Trane helps you identify the unique set of conditions that define your building and the best chillers to fit your applications. We collaborate together with you to tailor the perfect solution. Today, many buildings worldwide depend on chillers from Trane.

  • Flexible

    Our extensive line of internationally recognized chillers includes air-cooled, water-cooled and modular options, featuring centrifugal, helical-rotary and scroll compressors, ranging in capacities from 20 to 4,000+ tons.

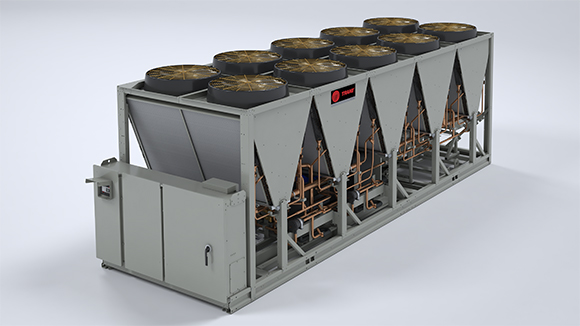

Amazing energy efficiency. Quiet sound. Legendary Reliability.

Trane’s Ascend Air-Cooled Chiller Model ACR delivers an amazing combination of energy efficiency, quiet sound levels and legendary Trane reliability. Available up to 550 tons with variable speed drive, free cooling, enabled by Symbio 800 with optional Air-Fi® wireless integration.

Versatility through design flexibility

Explore a wide range of chillers to solve your tough design challenges with options to meet your efficiency and sustainability objectives

Delivering the right Temperature, Humidity and Ventilaiton

Each building has its own unique set of conditions required to ensure the health, comfort and productivity of its occupants. Our chillers serve HVAC systems that deliver the right temperature, humidity and ventilation for the space, but they also help minimize operating costs with superior energy efficiency levels, low sound levels and with minimal environmental impact.

20 to 4,000+ Tons

The extensive Trane chiller product line was developed based on decades of knowledge and industry leadership, and includes centrifugal, helical-rotary and scroll compressor chillers, ranging in capacities from 20 to 4,000+ tons.

Trane Chillers

Air-Cooled Chillers

CGAM Air-Cooled Scroll Chiller

At a Glance:

  • Capacity Range: 20 to 130 tons (50 and 60 Hz)
  • Refrigerant: R-410A
  • Energy Efficiency Rating (EER): IPLV: 13.7-16.6 (high-efficiency); 14.5-16.9(extra-high-efficiency)
Sintesis® Air-Cooled Chillers

At a Glance:

  • Capacity Range: 115 to 520 tons
  • Refrigerant: R-134a or R-513A
  • Compressor Design: Helical rotary screw
  • Energy Efficiency Rating (EER): IPLV: 16.0-18.0 (high-efficiency)
Ascend™ Air-Cooled Chiller

At a Glance:

  • Capacity Range: 140 to 230 tons
  • Refrigerant: R-410A
  • Compressor Design: Scroll with variable volume ratio
  • Energy Efficiency Rating (EER): IPLV: 15.8-16.5
Ascend® Air-Cooled Chiller with Integrated Free Cooling

At a Glance:

  • Capacity Range: 150 to 550 tons
  • Refrigerant: R-134a
  • Compressor Design: Helical rotary screw
  • Energy Efficiency Rating (EER): IPLV: 19.7-21.6
  • Enabled by Symbio 800 unit controller
  • Integrated Free-cooling option
Air-Cooled Oil-Free Magnetic Bearing Chillers

At a Glance:

  • 60 to 440 tons
  • Up to 4 redundant circuits
  • Available with R-134a refrigerant with options for low GWP R-513A
  • Ideal for mission critical applications
Ascend® Air-to-Water Heat Pump

At a Glance:

  • Electrified heating or cooling
  • Capacity Range: 140 to 230 tons cooling; 1500 to 2500 MBh heating
  • Intermediate Discharge Valves on scroll compressor
  • Variable speed fans
  • Transverse “V” condenser coil fins
  • Enabled by Symbio® 800 unit controller
  • Operating Map Heating Mode: 100 F water at 0 F ambient
  • ASHRAE 90.1-2019 compliant

Modular Units

Thermafit™ Oil-free Magnetic Bearing Modular Chiller

[Model TACW] At a glance

  • 60-135T/unit (1000T Bank)
  • Provides cooling only
  • Available with R-134a refrigerant with options for low GWP R-513A
  • Full load efficiency exceeds ASHRAE® 90.1 standards
  • Available with knockdown construction
  • Cleanable shell and tube heat-exchanger
  • Zero oil-related maintenance
  • Smallest modular footprint with cleanable shell and tube heat exchanger
Thermafit™ Air-Cooled Modular Chillers

[Models AMC, AMT] At a glance

  • 15-80 ton / unit
  • Provides cooling
  • Full heat recovery option available
  • Integrated free cooling available
  • Available with standard or high efficiency
  • Available with 410a
  • Meets ASHRAE 90.1
  • Variable speed compressor and variable speed fans
Thermafit™ Water-source Modular Multi-pipe Unit

[Model MWS ] At a glance

  • 30-60T (60-480T banks) 450 MBH to 7,200 MBH
  • Provides all electric simultaneous heating and cooling
  • Available with 410a
  • Meets ASHRAE 90.1 cooling
  • While in simultaneous mode, combined heating and cooling efficiencies up to 28 EER can be achieved
  • 6-pipe design features three independent water loops
  • Ideal for geothermal applications.
Thermafit™ Water-to-Water Modular Heat Pump

[Model WXM] At a glance

  • 20-80 tons (800T Bank)
  • Provides all electric heating or cooling
  • Available with 410a
  • Meets ASHRAE 90.1
  • Ideal for cooler geographic regions with heating and cooling needs

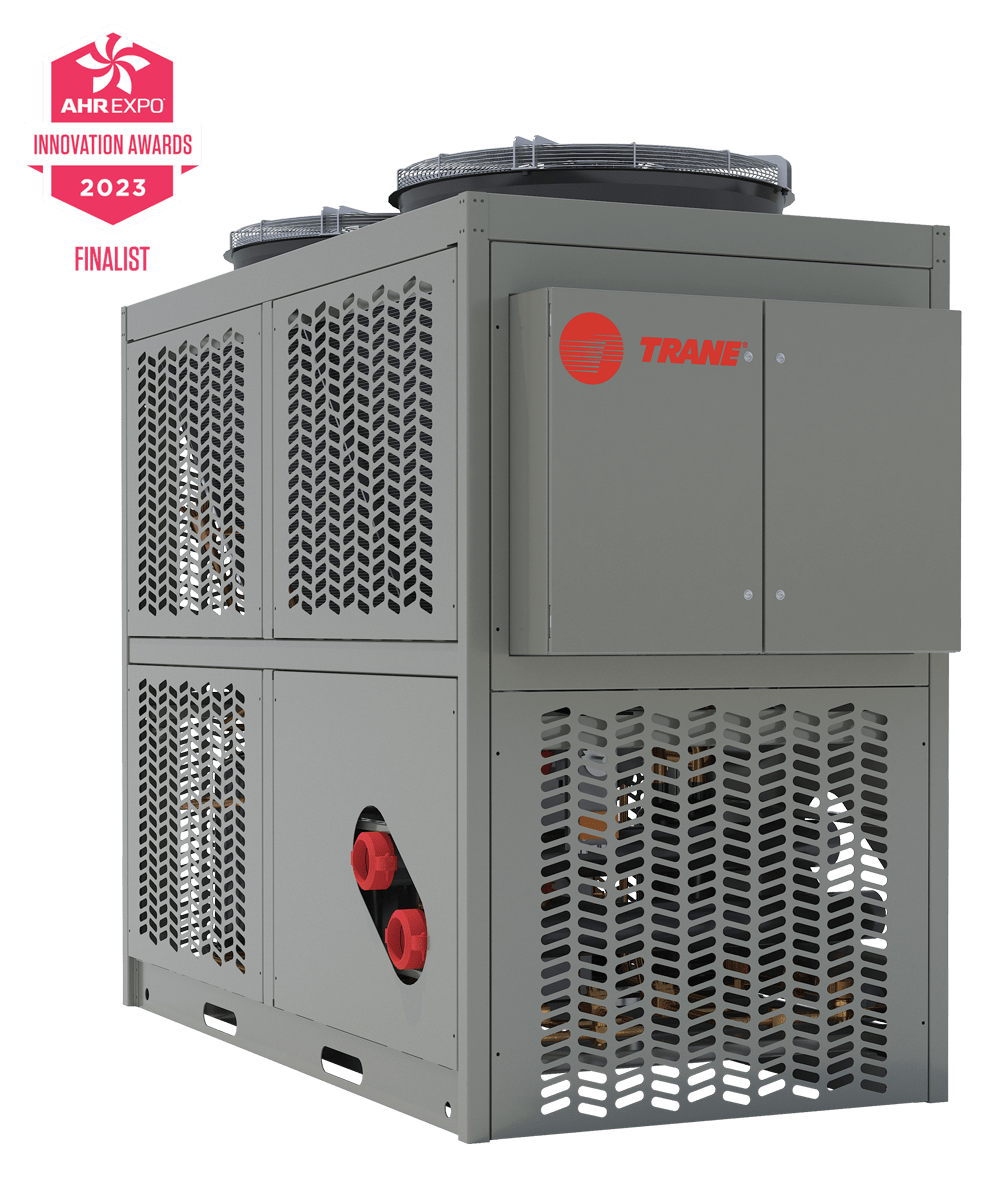

Thermafit™ Modular Air-to-Water Heat Pumps
[Model AMX] At a glance
  • Each module capable of 30 tons cooling, 390 MBh heating
  • Provides electric heating or cooling
  • Available with 410a
  • Meets ASHRAE 90.1
  • Vapor injection enables higher leaving water termperature
  • Lab tested to provide reliable heating in outdoor temperatures down to 0° F
Thermafit™ Water-Cooled Modular Chillers

 [Models MWC, MWT] At a glance

  • 15-80 tons (800 ton bank)  Model MWC standard efficiency
  • 20-40 tons (400 ton bank) Model MWT high efficiency
  • Provides cooling
  • Heat recovery option available
  • Available with R-410A with option for R-134a
  • Meets ASHRAE 90.1 for cooling
  • Available with standard or high efficiency
  • Variable speed compressor
  • Single or dual circuit available

Water-Cooled Chillers

Water-Cooled Oil-Free Magnetic Bearing Chillers by Arctic

At a glance

  • Water Cooled models from 60 to 1,500 tons available with dual circuits
  • Available with R-134a refrigerant with options for low GWP R-513A and HFO R-1234ze
Water-Cooled Helical Rotary Chiller

At a glance

  • Capacity Range: 80 to 450 tons, 60 Hz; 60 to 450 tons, 50 Hz
  • Refrigerant: R-134a or R-513A
  • Best Full-load Efficiency: 0.6200 kW/ton (at AHRI conditions)
  • Best Part-load Efficiency: 0.4800 kW/ton
  • Compressor Type: Helical Rotary
  • Medium Pressure
CenTraVac® Water-Cooled Chiller

At a glance

  • Capacity Range: 120 to 4,000+ tons, 60/50 Hz
  • Refrigerant: R-514A and R-1233zd Compressor
  • Best Full-load Efficiency: 0.4872 kW/ton (at AHRI conditions)
  • Best Part-load Efficiency: 0.3055 kW/ton
  • Compressor type: Centrifugal
  • Low Pressure
Agility® Centrifugal Water-Cooled Chiller

At a glance

  • Capacity Range: 175 to 425 tons, 60/50 Hz
  • Refrigerant: R-134a or R-513A
  • Best Full-load Efficiency: 0.52 kW/ton (at AHRI conditions)
  • Best Part-load Efficiency: 0.31 kW/ton

Cold Generator Scroll Chillers

Cold Generator™ Scroll Chillers
  • Capacity range from 20 to 75 tons
  • Highly efficient water cooled comfort and process cooling solution
  • Doorway friendly footprints and service centric design elements streamline installation and simplify maintenance
  • AHRI and ETL/ETLc certified.
Cold Generator™ Scroll Chillers

At a glance

  • Capacity range from 20 to 75 tons
  • Highly efficient water cooled comfort and process cooling solution.
  • Doorway friendly footprints and service centric design elements streamline installation and simplify maintenance
  • ETL/ETLc certified.
Cold Generator™ Scroll Chillers
At a glance
  • Capacity range from 20 to 85 tons
  • Reliable performance and optimized capacity from a compact, modular unit
  • Overall footprint that is 27 percent smaller than similar products.
