1
| Double wall casing option
| Ensures insulation fibers are out of the air stream and simplifies routine maintenance.
|
2
| MERV 13 filter option (LEED)
| MERV 13 filters capture particles as small as 0.3-1.0 um- this includes bacteria, smoke and dust - and can help earn a point toward a LEED certification.
|
3
| Filter fit and accessibility
| An optional bottom (horizontal units) filter access box is available to improve accessibility. Easy filter access facilitates scheduled changes. Tool less service enhances easy serviceability.
|
4
| Removable, sloped drain pain
| Sloped drain pans eliminate water accumulation and associated mold growth. Removable drain pans are easily cleaned during routine maintenance.
|
5
| Increased static pressure capabilities
| Increased static pressure capabilities
|
6
| Non-corrosive drain pan
| Drain pan will not rust and minimizes the possibility of drain clogs, preventing water accumulation.
|
7
| Coil mounting
| Coils are conveniently mounted above the drain pan on rails so they can slide in and out for easy cleaning.
|
8
| EC Motor
| Variable speed ECM technology means units operate at low speeds for more time. This improves dehumidification, a key factor for IAQ and comfort.
|
9
| Factory programmed mounted controls
| Pre-programmed Single Zone VAV control enables improved part load dehumidification
|
Blower Coil Unit
Overview
Single Zone VAV solution.
Trane blower coil units are a cost-effective and efficient way to heat and cool commercial spaces.
- Airflow Performance ranging up to 4000 CFM
- 4″ total static pressure supports MERV8, MERV13 high-efficiency filtration
- 1″ double wall casing construction (optional)
- Factory piping kit with optional Pressure Independent Control Valve
- Single Zone VAV control
-
Delivers Lower Total Cost of Ownership through Energy Efficiency
Trane blower coil air handlers area an economical and efficient choice for entry-level AHU applications. Our blower coil units combine superior coil performance with high-efficiency EC motor technology.
Additionally, they come with pre-set single-zone variable air volume sequences and optional pressure-independent control valves.
-
Improves Indoor Environmental Quality for Occupants
Our blower coil units operate quietly because of our soft ramp variable speed technology, double-wall construction, and better sound attenuators. This creates a pleasant atmosphere in any building.
Innovative air discharge temperature control algorithms and expanded filtration capabilities enhance indoor air quality and stabilize temperature.
-
Streamlined Installation and Maintenance
The blower coil unit controls are installed and programmed at the factory. Optional Air-Fi® Wireless is available. Lifting brackets are integrated. Valve kits are pre-designed to make installation quicker and more reliable.
The VelociTach™ motor control board has an LED display and manual controls. It also has tool-less filter access panels, making diagnostics and maintenance easier than ever.
Product Information
- Airflow Performance ranging up to 4000 CFM
- 4” total static pressure supports MERV8, MERV13 high-efficiency filtration
- 1” double wall casing construction (optional)
- Factory piping kit with optional Pressure Independent Control Valve
- Single Zone VAV control

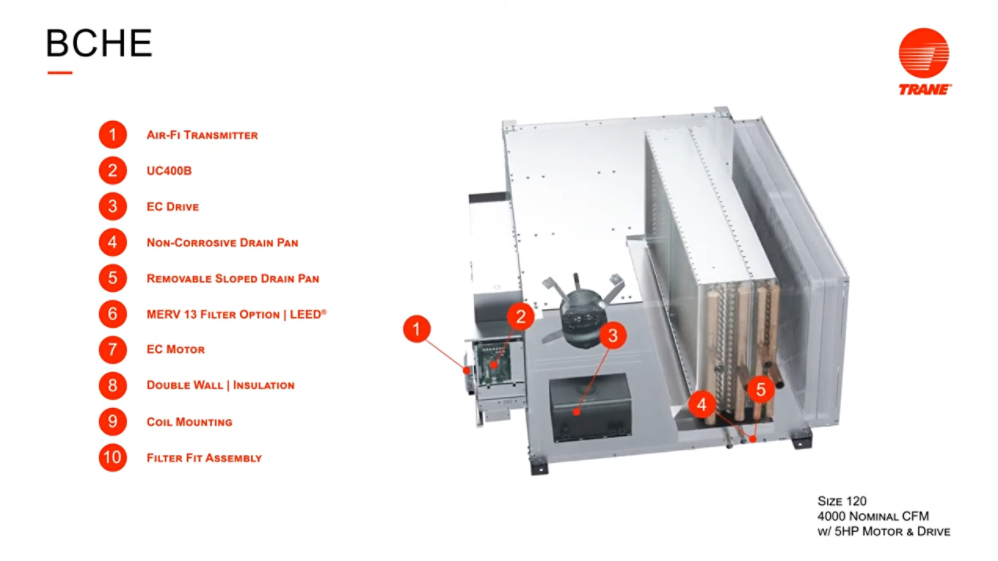

Trane Blower Coil Feature Overview
