XV19 Variable Speed

XV19 Variable Speed
ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code
Our
communicating high efficiency units Indoor and outdoor sensors allow the thermostat control to determine and communicate exactly how much heating or cooling, dehumidification or humidification and air flow are required to keep the home optimally comfortable.
must be installed with another communicating high efficiency unit. If you do not currently have a communicating high efficiency setup you will need one of the following communicating high efficiency components to pair with the XV19 Variable Speed: Hyperion™ TAM9 Air Handler, XC 80 Gas Furnace, or XC 95M Furnace.

What's Included

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

Quietest Quietest

Energy Savings:
Yearly energy savings based on the ratings of a matched system. The majority of systems installed prior to 2006 are 10 SEER or lower.
54%
SAVE 54%
Save an average of 54 on energy costs † with this unit

XV19 Variable Speed DESCRIPTION

Heat Pump

XV19 Variable Speed

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code
Our
communicating high efficiency units Indoor and outdoor sensors allow the thermostat control to determine and communicate exactly how much heating or cooling, dehumidification or humidification and air flow are required to keep the home optimally comfortable.
must be installed with another communicating high efficiency unit. If you do not currently have a communicating high efficiency setup you will need one of the following communicating high efficiency components to pair with the XV19 Variable Speed: Hyperion™ TAM9 Air Handler, XC 80 Gas Furnace, or XC 95M Furnace.

What's Included

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

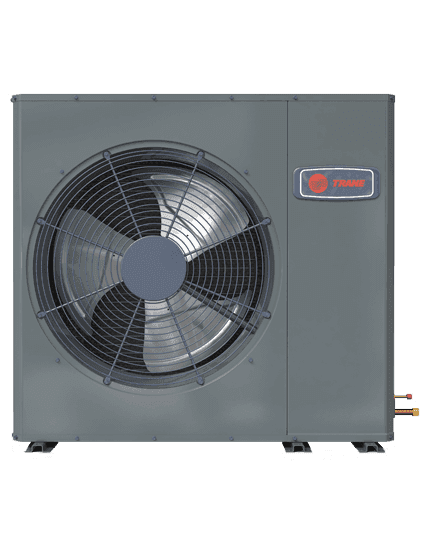

Our quietest and most energy efficient heat pump delivers maximum comfort while keeping noise levels low.

  • SEER rating up to 19.5 and high efficiency Heating Seasonal Performance Factor of up to 12
  • Ultra quiet performance with sound levels of 43 to 57 dBA
  • TruComfort™ variable speed system provides 500-700 comfort stages for maximum efficiency
  • Quiet performance and small footprint is perfect for cities and space-challenged spaces

More Details

energy star logo
ENERGY STAR® Qualified*

Overview

-

Trane TruComfort™

The Trane TruComfort™ systems give you precise comfort by running at the exact speed needed to keep your home comfortable. This allows the variable speed compressor, outdoor fan, and indoor fan to vary operating speed and BTU as the temperature outside changes, slowing down or speeding up gradually in as little as 1/10 of 1% increments to keep comfort within 1/2° of the thermostat setting.

Efficient performance

The XV19 Variable Speed Low Profile Heat Pump has a SEER rating up to 19.5 and HSPF up to 12, making it an excellent choice for home comfort and energy-efficiency tax credits. With Trane TruComfort™ technology, the system automatically adjusts itself while maintaining constant and consistent speeds to avoid temperature swings.

Unique design

Designed with limited space in mind, this unit will meet the needs of difficult-to-install or tight space required homes such as zero lot line, condos, or under decks.

Ultra Quiet Operation

The quietest heat pump in our offering with sound levels of 43 to 57dBA, this unit will meet the low sound requirements some cities have in place for HVAC systems and is ideal for outdoor living spaces, bedrooms, condos, hotels, and restaurants.

Cleaner, healthier indoor air

Add Trane CleanEffects™ Air Cleaner to your home air conditioning system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Product Brochure

Specifications

-

XV19 Variable Speed Low Profile heat pump models

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.) SOUND RATING dBA (Min-Max)
4TWL9024A 23,800 2 37 47 18 44-50
4TWL9036A 36,000 3 37 47 18 43-49
4TWL9048A 42,000 4 43 47 18 44-54
4TWL9060A 58,600 5 43 47 18 48-57

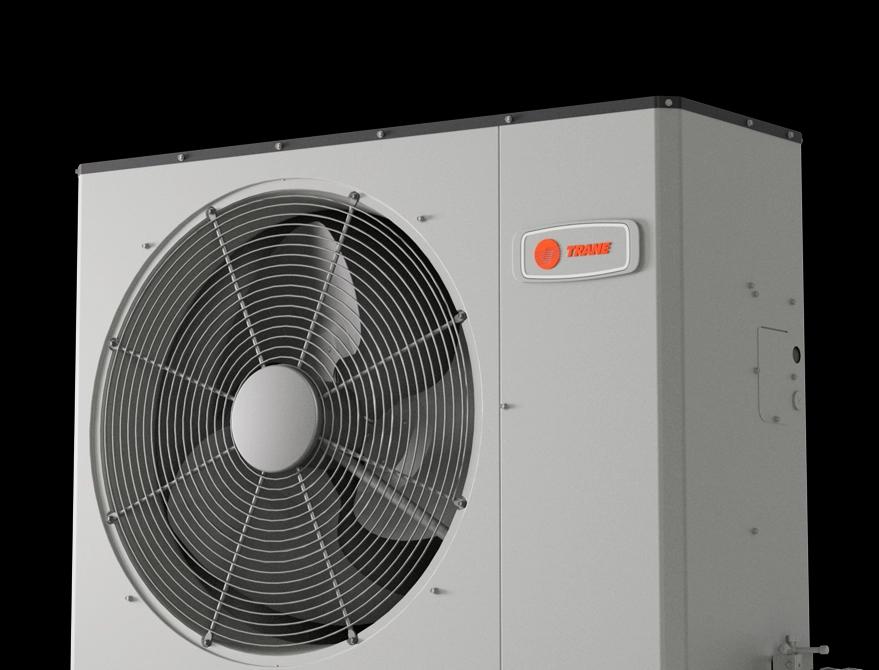

High performance, quiet operation, excellent reliability, and superior energy efficiency - that's what you can expect from the XV family of heat pumps.  The XV19 Variable Speed Low Profile Heat Pump includes:

  • ComfortLink II controls
  • Climatuff™ variable speed compressor
  • Variable speed fan with swept blade design
  • Refrigerant cooled inverter drive
  • Integrated diagnostic display panel
  • Baked-on powder paint finish
  • Corrosion-resistant Weatherguard™ fasteners
  • Duratuff™ coil (copper tube aluminum plate fin)
  • Recognized as the Most Efficient of ENERGY STAR in 2019
Air conditioner banner

Trane Warranty

Protect your XV19 Variable Speed with one of our top of the line warranties

View Warranty
The majority of systems installed prior to 2006 are 10 SEER or lower. Potential energy savings may vary depending on your lifestyle, system settings, equipment maintenance, local climate, home construction and installation of equipment and duct system.

Contact a local Trane Comfort Specialist™

WANT TO SAVE ON A NEW SYSTEM?
NEED EMERGENCY REPAIRS?

WE CAN HELP

Let us know how we can help and the top-rated Trane Comfort Specialist™ in your area will contact you shortly.

By pressing the “Submit” button, I consent to receive a phone call about products and services from a Trane Comfort Specialist™ at the phone number(s) provided. I understand these calls may be generated using automated technology and my consent does not imply or require that a purchase be made.

  • Weather for

    Charlotte

    92°

    Clear Sky

Contact an Expert

Still have questions?

Here's what your dealer can do for you

  • Custom evaluation
  • Local rebates
  • Expert repairs
  • Upfront pricing

†This product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details.

*PRICE RANGES

Price ranges shall apply to basic installation to include standard materials and service, which may vary by the type of system or unit selected. All price ranges are subject to adjustment based on the unique characteristics of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™, including the cost of mechanical permits that may be required by local and state law. Price ranges do not include any taxes, now or hereafter enacted. Taxes will be added by your Trane Comfort Specialist™ to the sales price to comply with local and federal tax law.

Basic installation varies slightly based on the type of system, unit or accessory purchased.

AC Furnace & Air Handler Split and Packaged Systems: Materials & Services - Install new condenser pad, an A/C whip, with electrical disconnect switch, either flush existing refrigerant line set or install new line sets (determined by placement in home); includes the removing and hauling away of the old system or unit, installing new system or unit by local code, installing new thermostat, reconnecting to existing ductwork.

Mini-Split Systems: Materials & Services: Install new condenser pad, electrical wiring, either flush existing refrigerant lineset or install new line sets (determined by placement in home) and a remote control; includes the removing and hauling away of the old system or unit, installing new system by local code, connect electrical to new unit.

Accessory installation: Materials & Services - electrical wiring; includes the removing and hauling away of the old system, installing new system by local code, connect electrical to new unit.

Standard Warranty: Standard Labor (One (1) Year XR Series, Two (2) Years XL/XV Series) & Parts Warranty (5 Year Unregistered or 10 Year Registered). Longer warranty terms are available. Please contact your independent Trane Comfort Specialist™ for details.
