See Heat Pumps

XR14

XR14
ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

What's Included

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad

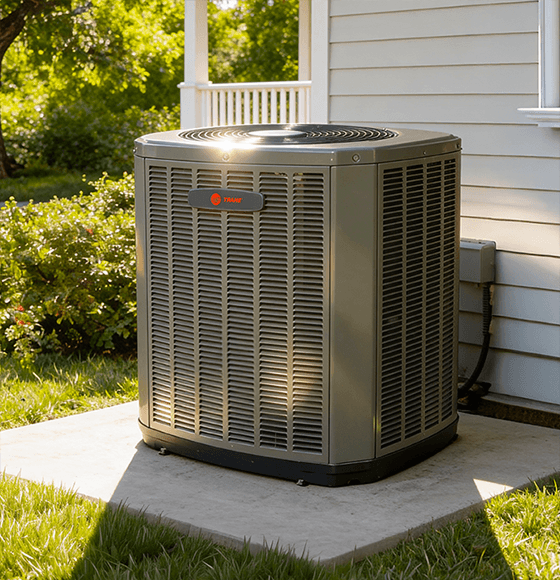

    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included
Energy Savings:
Yearly energy savings based on the ratings of a matched system. The majority of systems installed prior to 2006 are 10 SEER or lower.
42%

XR14 DESCRIPTION

Heat Pump

XR14

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

What's Included

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

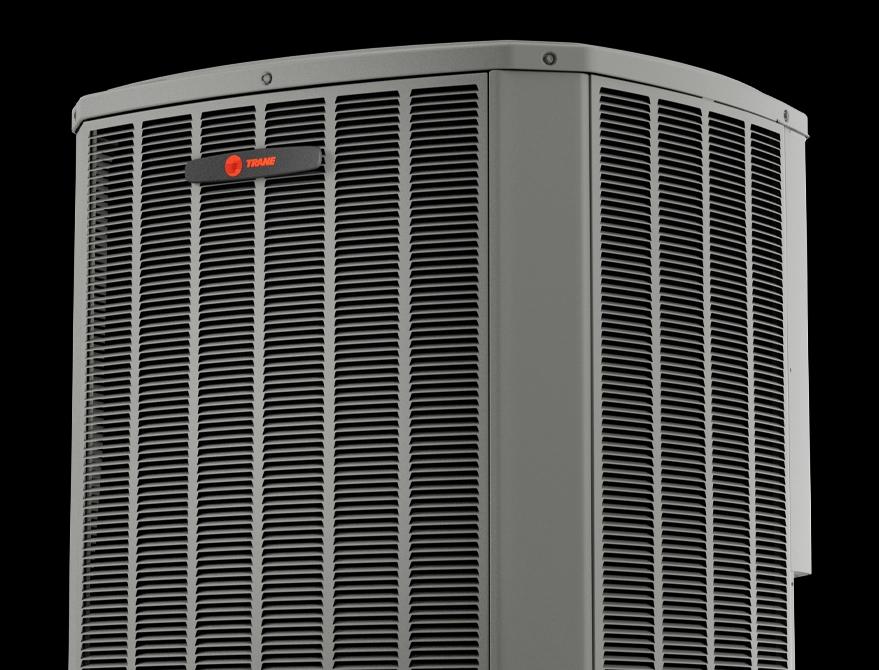

Get affordable heating and cooling with the durability you expect from Trane. The XR14 electric heat pump offers up to a 14 SEER rating on a matched air handler or furnace system.

More Details

TOTAL ESTIMATED INSTALLED PRICE *Estimated price reflects the most common average installed cost across the USA. Price may vary in your area. See more details

Overview

-

Efficient performance

The XR14’s electric heat pump’s SEER rating of up to 14.00 and HSPF of up to 8.20 make it an energy-efficient choice for home comfort.

Durable construction

Materials for all components are tested again and again for long-lasting performance and reliability.

Cleaner, healthier indoor air

Add Trane CleanEffects™ Air Cleaner to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Maximize your comfort with a hybrid system

Match your heat pump with a gas furnace to enjoy the energy-saving benefits of a hybrid system. Your heat pump is in charge of heating your home. Then, your furnace takes over when the weather gets too cold. Together, they provide you with reliable, energy-efficient comfort all year long.

Product Brochure

Specifications

-

XR14 Heat Pump Models (R-410A Refrigerant)

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TWR4018D 17,600 1.5 29 33 30
4TWR4024D 23,600 2 33 33 30
4TWR4030D 28,200 2.5 33 37 34
4TWR4036D 34,000 3 33 37 34
4TWR4042D 41,000 3.5 33 37 34
4TWR4048D 46,500 4 37 37 34
4TWR4060D 56,000 5 45 37 34

XR14 3-Phase Heat Pump Models

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TWA4036A3 36,800 3 29 37 34
4TWA4042A3 41,500 3.5 29 37 34
4TWA4048A3 47,500 4 33 37 34
4TWA4060A3 55,500 5 45 37 34
4TWA4036A4 35,600 3 29 37 34
4TWA4042A4 42,000 3.5 29 37 34
4TWA4048A4 47,500 4 33 37 34
4TWA4060A4 55,000 5 45 37 34

Every Trane Heat Pump is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The XR14 electric heat pump includes:

  • Climatuff™ compressors
  • Galvanized-steel louvered panels
  • Baked-on powder paint
  • Spine Fin™ outdoor coil
Air conditioner banner

Trane Warranty

Protect your XR14 with one of our top of the line warranties

View Warranty
The majority of systems installed prior to 2006 are 10 SEER or lower. Potential energy savings may vary depending on your lifestyle, system settings, equipment maintenance, local climate, home construction and installation of equipment and duct system.
