Heating Stages Two-stage
Savings & Offers

S9X2 DESCRIPTION

Gas Furnace

S9X2

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

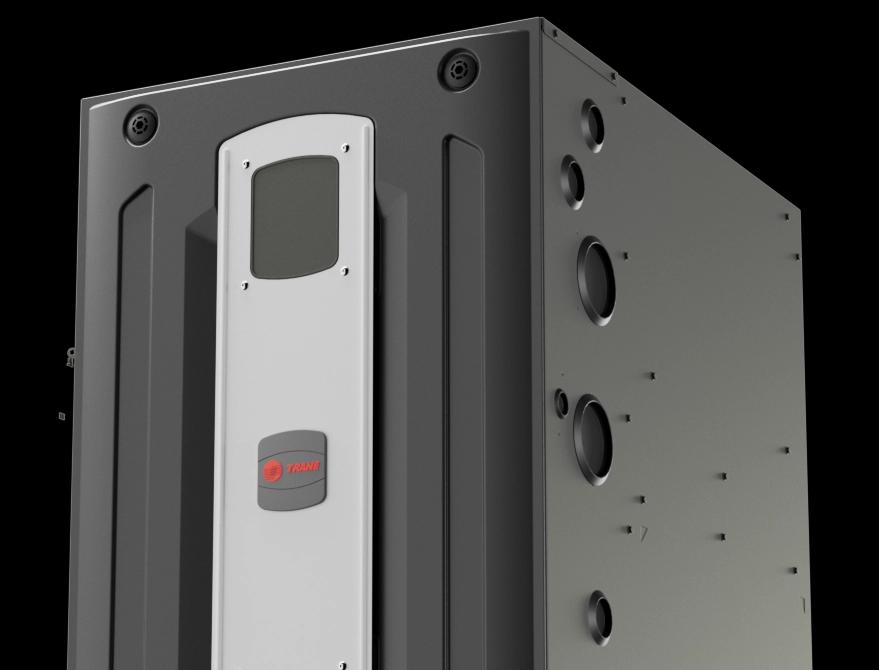

The new S9X2 furnace offers two stages of gas heat for comfort in cold weather, and a CTM blower for maximum efficiency in warm weather, while maintaining the quality and reliability that Trane is known for.

More Details

ENERGY STAR® Qualified*
*Estimated price reflects the most common average installed cost across the USA. Price may vary in your area. See more details

Overview

-

  • Up to 96% AFUE – fuel efficient design
  • 2 stage gas heat – more comfort, quieter operation, less temperature swing
  • ECM Constant Torque, high-efficiency motor – electrically efficient
  • Vortica™ II blower – Exclusive design is efficient and quiet
  • Stainless steel primary and secondary heat exchangers – reliable / durable
  • Three-way poise (U, HL, HR) plus dedicated DF – getting the right model is easier
  • 24v IFC – compatible with most thermostats
  • Matches with single stage or 2 stage AC or HP – more system design flexibility
  • 34” height – easy to fit in tight places or with larger coils
  • Easy to install and service – dealer friendly design
  • Certified 1% airtight – meets the most stringent building codes
  • Energy Star® certified – validated to be efficient

Product Brochure

Specifications

-

S9X2 FURNACE MODELS

MODEL MAX INPUT BTUH NOMINAL TONS COOLING AIRFLOW POISE AFUE ENERGY STAR
S9X2B040U3 40,000 3 Upflow / Horizontal 96 Yes
S9X2B060U4 60,000 4 Upflow / Horizontal 96 Yes
S9X2B080U4 80,000 4 Upflow / Horizontal 95 Yes
S9X2C080U5 80,000 5 Upflow / Horizontal 96 Yes
S9X2C100U5 100,000 5 Upflow / Horizontal 96 Yes
S9X2D120U5 120,000 5 Upflow / Horizontal 95 Yes
S9X2B040D3 40,000 3 Downflow 96 Yes
S9X2B060D3 60,000 3 Downflow 95 Yes
S9X2B080D4 80,000 4 Downflow 95 Yes
S9X2C100D5 100,000 5 Downflow 95 Yes
S9X2D120D5 120,000 5 Downflow 95 Yes

Every Trane furnace is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The S9X2 includes:

  • Re-designed cabinet platform to fit in tighter spaces
  • CTM blower motor
  • Heavy gauge, two-tone powder-painted cabinet
  • Stainless steel primary and secondary heat exchanger
  • Insulated cabinet for quiet operation

Trane Warranty

Protect your S9X2 with one of our top of the line warranties

View Warranty

Contact a local Trane Comfort Specialist™

WANT TO SAVE ON A NEW SYSTEM?
NEED EMERGENCY REPAIRS?

WE CAN HELP

Let us know how we can help and the top-rated Trane Comfort Specialist™ in your area will contact you shortly.

By pressing the “Submit” button, I consent to receive a phone call about products and services from a Trane Comfort Specialist™ at the phone number(s) provided. I understand these calls may be generated using automated technology and my consent does not imply or require that a purchase be made.
  • Weather for

    Charlotte

    92°

    Clear Sky

Still have questions?

Here's what your dealer can do for you

  • Custom evaluation
  • Local rebates
  • Expert repairs
  • Upfront pricing

†This product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details.

*PRICE RANGES

Price ranges shall apply to basic installation to include standard materials and service, which may vary by the type of system or unit selected. All price ranges are subject to adjustment based on the unique characteristics of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist, including the cost of mechanical permits that may be required by local and state law. Price ranges do not include any taxes, now or hereafter enacted. Taxes will be added by your Trane Comfort Specialist to the sales price to comply with local and federal tax law.

Basic installation varies slightly based on the type of system, unit or accessory purchased.

AC Furnace & Air Handler Split and Packaged Systems: Materials & Services - Install new condenser pad, an A/C whip, with electrical disconnect switch, either flush existing refrigerant line set or install new line sets (determined by placement in home); includes the removing and hauling away of the old system or unit, installing new system or unit by local code, installing new thermostat, reconnecting to existing ductwork.

Mini-Split Systems: Materials & Services: Install new condenser pad, electrical wiring, either flush existing refrigerant lineset or install new line sets (determined by placement in home) and a remote control; includes the removing and hauling away of the old system or unit, installing new system by local code, connect electrical to new unit.

Accessory installation: Materials & Services - electrical wiring; includes the removing and hauling away of the old system, installing new system by local code, connect electrical to new unit.

Standard Warranty: Standard Labor (One (1) Year XR Series, Two (2) Years XL/XV Series) & Parts Warranty (5 Year Unregistered or 10 Year Registered). Longer warranty terms are available. Please contact your independent Trane Comfort Specialist for details.
