S9X1

S9X1
ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

Cost Breakdown

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

Best Value Best Value

Heating Stages
Units with multiple heating stages have more precise temperature control and operate more efficiently than single stage units.
One-stage

S9X1 DESCRIPTION

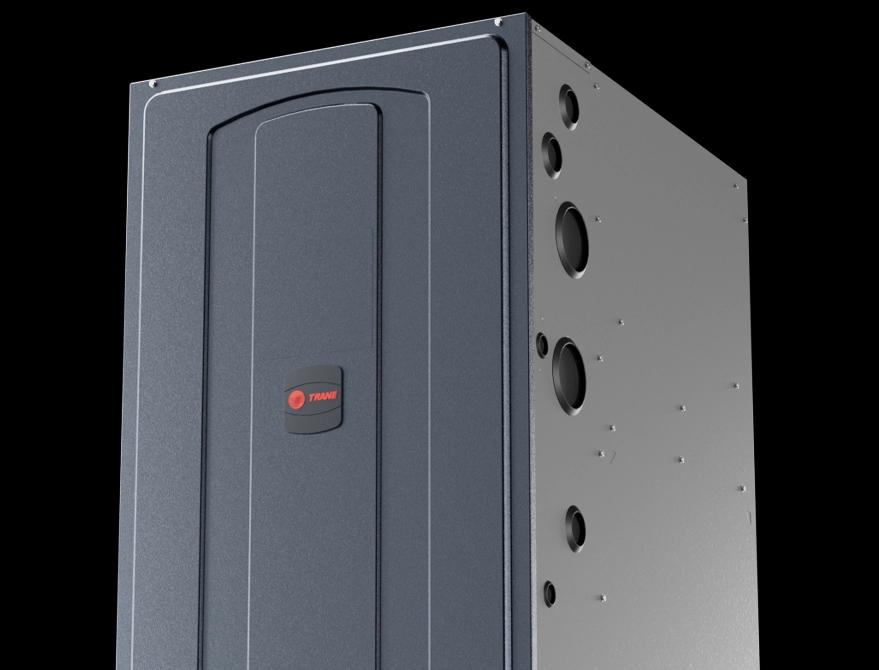

Gas Furnace

S9X1

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code

Cost Breakdown

  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

Our most affordable high energy efficient furnace keeps your home and budget comfortable.

  • High-efficiency rating of up to 96% Annual Fuel Utilization Efficiency (AFUE)
  • Tested materials and components for dependable performance

More Details

ENERGY STAR® Qualified*
*Estimated price reflects the most common average installed cost across the USA. Price may vary in your area. See more details

Overview

-

Efficient performance

The S9X1 family features up to 96% AFUE and is packed with energy-saving features such as a high efficiency ECM (Electronically Commutated Motor) blower motor. These high efficiency features help lower monthly energy bills, helping you save money over the lifetime of your furnace.

Comfortable, even heating

High-efficiency, Constant Torque ECM blower motor provides a consistent flow of warm, comfortable air, while operating quietly and efficiently.

Durable Construction

All S9X1 materials are tested repeatedly for long-lasting performance and reliability.

Cleaner, healthier indoor air

Add Trane CleanEffects™ to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Product Brochure

Specifications

-

S9X1 FURNACE MODELS

MODEL MAX INPUT BTUH NOMINAL TONS COOLING AIRFLOW POISE AFUE ENERGY STAR
S9X1B040U3 40,000 3 Upflow / Horizontal 96 Yes
S9X1B060U4 60,000 4 Upflow / Horizontal 96 Yes
S9X1B080U4 80,000 4 Upflow / Horizontal 96 Yes
S9X1C080U5 80,000 5 Upflow / Horizontal 96 Yes
S9X1C100U5 100,000 5 Upflow / Horizontal 95 Yes
S9X1D120U5 120,000 5 Upflow / Horizontal 95 Yes
S9X1B040D3 40,000 3 Downflow 96 Yes
S9X1B060D3 60,000 4 Downflow 96 Yes
S9X1B080D4 80,000 4 Downflow 95 Yes
S9X1C100D5 100,000 5 Downflow 96 Yes
S9X1D120D5 120,000 5 Downflow 95 Yes

Every Trane furnace is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The S9X1 single-stage gas furnace includes:

  • High-efficiency constant torque ECM blower motor
  • Self-diagnostic integrated furnace control board (IFC)
  • Matches with single- and two-stage AC and HP for more system options
  • Durable silicon nitride hot surface igniter
  • Sealed combustion, 100% outside air option
  • Multi-port, in-shot burners
  • Tubular, stainless steel primary heat exchanger
  • Patented Vortica™ II blower design
  • Pre-painted galvanized steel cabinet
  • Fully insulated for quiet operation

Trane Warranty

Protect your S9X1 with one of our top of the line warranties

View Warranty

Contact a local Trane Comfort Specialist™

WANT TO SAVE ON A NEW SYSTEM?
NEED EMERGENCY REPAIRS?

WE CAN HELP

Let us know how we can help and the top-rated Trane Comfort Specialist™ in your area will contact you shortly.

By pressing the “Submit” button, I consent to receive a phone call about products and services from a Trane Comfort Specialist™ at the phone number(s) provided. I understand these calls may be generated using automated technology and my consent does not imply or require that a purchase be made.

  • Weather for

    Charlotte

    92°

    Clear Sky

Contact an Expert

Still have questions?

Here's what your dealer can do for you

  • Custom evaluation
  • Local rebates
  • Expert repairs
  • Upfront pricing

†This product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details.

*PRICE RANGES

Price ranges shall apply to basic installation to include standard materials and service, which may vary by the type of system or unit selected. All price ranges are subject to adjustment based on the unique characteristics of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™, including the cost of mechanical permits that may be required by local and state law. Price ranges do not include any taxes, now or hereafter enacted. Taxes will be added by your Trane Comfort Specialist™ to the sales price to comply with local and federal tax law.

Basic installation varies slightly based on the type of system, unit or accessory purchased.

AC Furnace & Air Handler Split and Packaged Systems: Materials & Services - Install new condenser pad, an A/C whip, with electrical disconnect switch, either flush existing refrigerant line set or install new line sets (determined by placement in home); includes the removing and hauling away of the old system or unit, installing new system or unit by local code, installing new thermostat, reconnecting to existing ductwork.

Mini-Split Systems: Materials & Services: Install new condenser pad, electrical wiring, either flush existing refrigerant lineset or install new line sets (determined by placement in home) and a remote control; includes the removing and hauling away of the old system or unit, installing new system by local code, connect electrical to new unit.

Accessory installation: Materials & Services - electrical wiring; includes the removing and hauling away of the old system, installing new system by local code, connect electrical to new unit.

Standard Warranty: Standard Labor (One (1) Year XR Series, Two (2) Years XL/XV Series) & Parts Warranty (5 Year Unregistered or 10 Year Registered). Longer warranty terms are available. Please contact your independent Trane Comfort Specialist™ for details.
