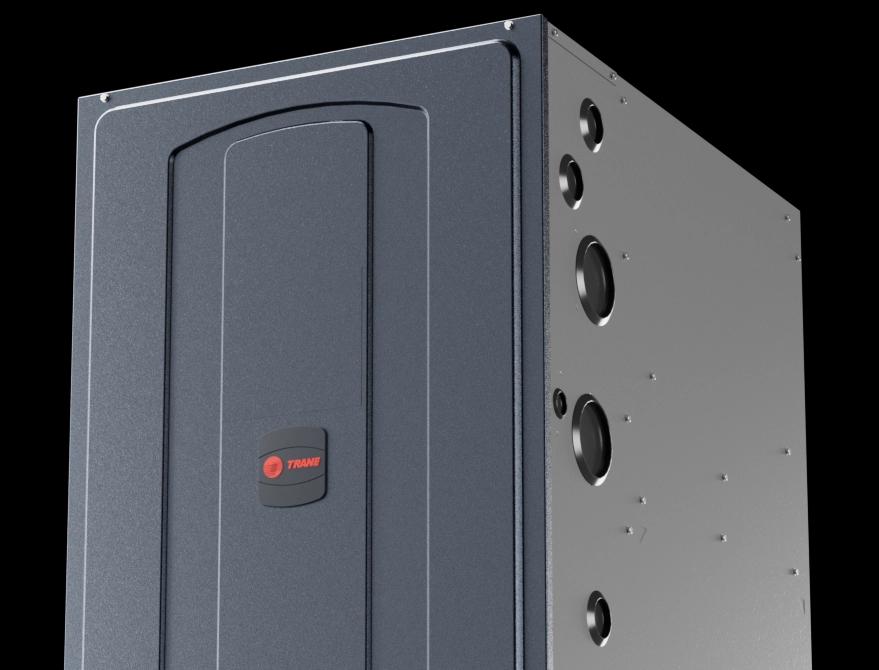

S9B1 DESCRIPTION

Gas Furnace

S9B1

ESTIMATED PRICE*
PRICE RANGES: Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code
The S9B1 furnace helps keep you and your budget comfortable with an AFUE rating of 92% and high-quality components that Trane is known for.

More Details

ENERGY STAR® Qualified*
*Estimated price reflects the most common average installed cost across the USA. Price may vary in your area. See more details

Overview

-

Efficient performance

The S9B1 furnace features an AFUE of 92%, meaning that 92 cents of every dollar you spend is converted into heat for your home.

Durable construction

Materials for all components are tested again and again for long-lasting performance and reliability.

Cleaner, healthier indoor air

Add Trane CleanEffects to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Product Brochure

Specifications

-

44 FURNACE MODELS

MODEL MAX INPUT BTUH NOMINAL TONS COOLING AIRFLOW POISE AFUE ENERGY STAR
S9B1B040U3 40,000 2 - 3 Upflow / Horizontal 92.1 Yes - South
S9B1B060U4 60,000 3 - 4 Upflow / Horizontal 92.1 Yes - South
S9B1B080U4 80,000 3 - 4 Upflow / Horizontal 92.1 Yes - South
S9B1C080U5 80,000 4 - 5 Upflow / Horizontal 92.1 Yes - South
S9B1C100U5 100,000 4 - 5 Upflow / Horizontal 92.1 Yes - South
S9B1D120U5 120,000 5 Upflow / Horizontal 92.1 Yes - South
S9B1B040D3 40,000 2 - 3 Downflow 92.1 Yes - South
S9B1B060D3 60,000 3 Downflow 92.1 Yes - South
S9B1B080D4 80,000 4 Downflow 92.1 Yes - South
S9B1C100D5 100,000 5 Downflow 92.1 Yes - South
S9B1D120D5 120,000 5 Downflow 92.1 Yes - South

Every Trane furnace is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The S9B1 includes:

  • Self-diagnostic integrated furnace control board (IFC)
  • Silicon nitride hot surface igniter
  • Multi-port, in-shot burners
  • Pre-painted, heavy steel cabinet
  • Insulated heat exchanger compartment
  • Tubular, stainless steel heat exchanger

Trane Warranty

Protect your S9B1 with one of our top of the line warranties

View Warranty
