TMM Series DESCRIPTION

Air Handler

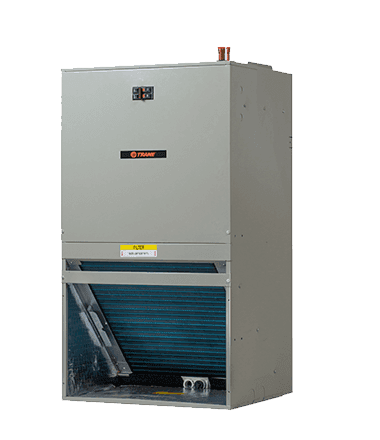

TMM Series

For small area applications, this affordable air handler meets or exceeds all standard efficiency requirements.

More Details

Overview

-

Reliability

The all-aluminum coil found in the TMM Series of residential air handlers is exponentially more durable than standard copper coils, which are susceptible to formicary corrosion. These all-aluminum coils ensure families stay comfortable indoors all year long, no matter what the weather outside.

Rust prevention

Trane residential air handlers come with a no-rust polymer drain pan along with galvanized cabinet features to keep things running and looking good for a long time.

Smaller unit for tighter applications

The TMM Series is designed to fit smaller spaces being mounted on studs or over the hot water heater for smaller spaces and tighter applications.

Product Brochure

Specifications

-

TMM5 AIR HANDLER MODELS

MODEL NOMINAL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
TMM5A0B24M 24000 2 39.5 22 19
TMM5A0B30M 30000 2.5 39.5 22 19
TMM5A0B36M 36000 3 39.5 22 19

TMM4 AIR HANDLER MODELS

MODEL NOMINAL COOLING CAPACITY (BTUH) HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
TMM4A0A18 18000 36.5 20.5 15
TMM4A0A24 24000 36.5 20.5 15
TMM4A0B30 30000 39.5 22 19
TMM4A0B36 36000 39.5 22 19

Trane TMM Series air handlers are built for specific needs and systems to provide you the most reliable comfort and efficiency, like only a Trane can. The TMM Series air handler includes:

  • Painted galvanized steel cabinet
  • Copper-aluminum coil
  • Cooling and heat pump systems available

Trane Warranty

Protect your TMM Series with one of our top of the line warranties

View Warranty
