Hyperion™ Series
Hyperion™ Series Description

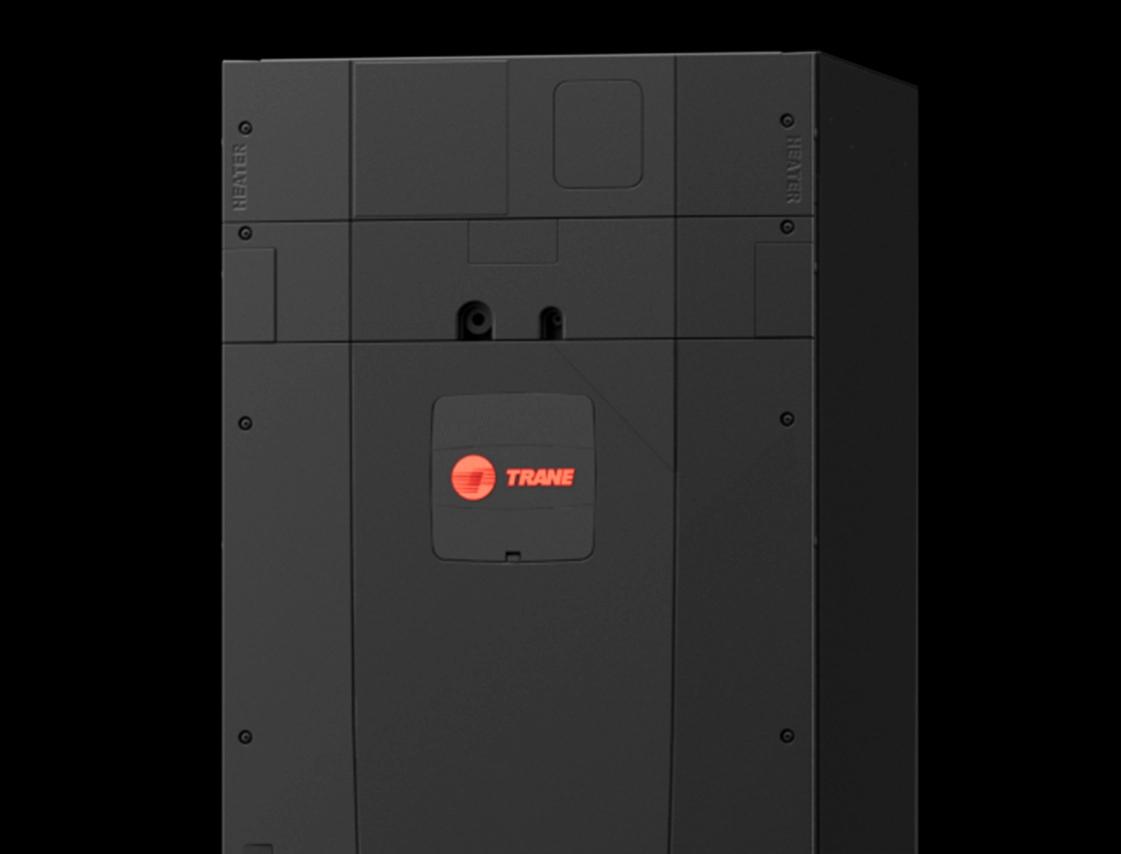

The extraordinary Trane Hyperion™ air handler represents a substantial advance in air handling technology. Using 14 industry-exclusive patents, the Hyperion offers significant advantages over other air handlers, advantages like refrigerator-styled insulation made without exposed fibrous material, which virtually eliminates sweating and condensation as well as helping create a safer environment for your home.
Overview
Reliability
The all-aluminum coil found in this new line of air handlers is exponentially more durable than standard copper coils, which are susceptible to formicary corrosion. This ensures families stay comfortable indoors all year long, no matter what the weather outside.
Double-walled construction
The double-walled cabinet eliminates the need for exposed insulation and helps prevent energy loss with the use of airtight plugs instead of conventional knockouts. This reduces the unit’s carbon footprint and provides a cleaner environment.
Quiet comfort
Thanks to the exclusive Trane Vortica™ blower, the new Hyperion™ air handler provides homeowners with reliable, ultra-quiet operation, so they can hear each other instead of the heating and cooling system.
Better, cleaner air
Add Trane CleanEffects™ to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.
Specifications
Hyperion™ TAM7 air handler models
| model | nominal cooling capacity (btuh) | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| TAM7A0A24 | 24000 | 50 | 17.5 | 22 |
| TAM7A0B30 | 30000 | 56 | 21 | 22 |
| TAM7A0C36 | 36000 | 57 | 23.5 | 22 |
| TAM7A0C42 | 42000 | 57 | 23.5 | 22 |
| TAM7A0C48 | 48000 | 62 | 23.5 | 22 |
| TAM7A0C60 | 60000 | 62 | 23.5 | 22 |
Hyperion™ GAF2 air handler models
| model | cooling capacity (btuh) | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| GAF2A0A18S11SA | 18,000 | 39.5 | 17.5 | 21.8 |
| GAF2A0A24S21SA | 24,000 | 39.5 | 17.5 | 21.8 |
| GAF2A0A30S21SA | 30,000 | 39.5 | 17.5 | 21.8 |
| GAF2A0A36S21SA | 36,000 | 39.5 | 17.5 | 21.8 |
| GAF2A0A36M31SA | 36,000 | 39.5 | 17.5 | 21.8 |
Hyperion™ GAT2 air handler models
| model | cooling capacity (btuh) | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| GAT2A0B42S31SA | 42,000 | 51.5 | 21.3 | 21.8 |
| GAT2A0B48S41SA | 48,000 | 55.7 | 21.3 | 21.8 |
| GAT2A0C60S41SA | 60,000 | 56.9 | 23.5 | 21.8 |
Hyperion™ GAM2 air handler models
| model | nom cap | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| GAM2A0A18 | 18,000 | 50 | 17.5 | 22 |
| GAM2A0A24 | 24,000 | 50 | 17.5 | 22 |
| GAM2A0A30 | 30,000 | 50 | 17.5 | 22 |
| GAM2A0A36 | 36,000 | 50 | 17.5 | 22 |
| GAM2A0B42 | 42,000 | 56 | 21 | 22 |
| GAM2A0C48 | 48,000 | 57 | 23.5 | 22 |
| GAM2A0C60 | 60,000 | 62 | 23.5 | 22 |
Hyperion™ GAM5 air handler models
| model | nom cap | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| GAM5B0A18 | 18,000 | 50 | 17.5 | 22 |
| GAM5B0A24 | 24,000 | 50 | 17.5 | 22 |
| GAM5B0B30 | 30,000 | 51.5 | 21 | 22 |
| GAM5B0B36 | 36,000 | 56 | 21 | 22 |
| GAM5B0C42 | 42,000 | 57 | 23.5 | 22 |
| GAM5B0C48 | 48,000 | 62 | 23.5 | 22 |
| GAM5B0C60 | 60,000 | 62 | 23.5 | 22 |
Hyperion™ TAM4 air handler models
| model | nom cap | height (in.) | width (in.) | depth (in.) |
|---|---|---|---|---|
| TAM4A0A18 | 18,000 | 50 | 17.5 | 22 |
| TAM4A0A24 | 24,000 | 50 | 17.5 | 22 |
| TAM4A0A30 | 30,000 | 50 | 18 | 22 |
| TAM4A0A36 | 36,000 | 50 | 17.5 | 22 |
| TAM4A0B42 | 42,000 | 56 | 21 | 22 |
| TAM4A0C48 | 48,000 | 57 | 23.5 | 22 |
| TAM4A0C60 | 60,000 | 62 | 23.5 | 22 |
Every Trane Air Handler is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The Hyperion™ includes:
- Uniquely designed cabinet
- Fully enclosed insulation
- All-aluminum coil
- Vortica™ blower motor
- Heating options for either hydronic or electric heat
- Corrosion-resistant finish
- “No leak” drain pan made from rust-resistant composites and built with a gradual slope
