XV18 TruComfort™ Variable Speed

XV18 TruComfort™ Variable Speed
ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code
Our
communicating high efficiency units Indoor and outdoor sensors allow the thermostat control to determine and communicate exactly how much heating or cooling, dehumidification or humidification and air flow are required to keep the home optimally comfortable.
must be installed with another communicating high efficiency unit. If you do not currently have a communicating high efficiency setup you will need one of the following communicating high efficiency components to pair with the XV18 TruComfort™ Variable Speed: Hyperion™ TAM9 Air Handler, XC 80 Gas Furnace, or XC 95M Furnace.

Cost Breakdown

  • Coil
    The coil, also known as an indoor coil or evaporator coil, is the part of your air conditioner or heat pump that regulates the temperature in your house all year long. The coil does this by absorbing the moisture and heat in your home. There can be no cold air without the evaporator coil.
    Included
  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

Quietest Quietest

SEER:
The higher the SEER, the less fuel you’ll need to keep your home comfortable, the less you’ll spend on energy, and the lower your carbon footprint will be.
Up to 18
Nominal Sound:
The average sound level in decibels. The higher the number, the louder the unit. For example, a vacuum cleaner = 70.
55
Cooling Stages
Units with multiple cooling stages have more precise temperature control and operate more efficiently than single stage units.
Multi
Energy Savings:
Yearly energy savings based on the ratings of a matched system. The majority of systems installed prior to 2006 are 10 SEER or lower.
56%
SAVE 56%
Save an average of 56 on energy costs  with this unit

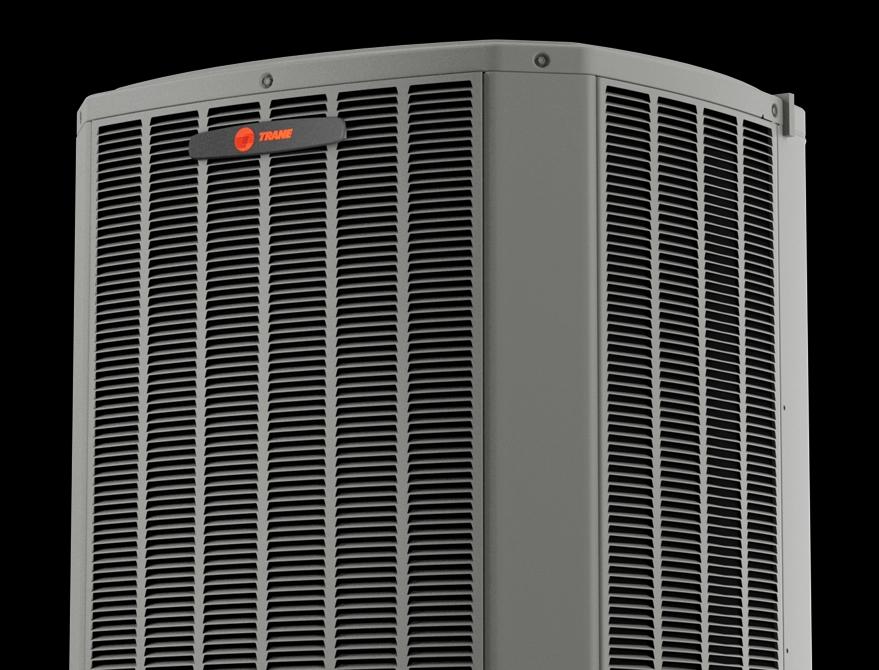

XV18 TruComfort™ Variable Speed DESCRIPTION

Variable Speed Air Conditioner

XV18 TruComfort™ Variable Speed

ESTIMATED PRICE*
PRICE RANGES: Price reflects the most common average installation cost in your area based on a 3 ton unit. Price ranges shall apply to basic installation. All price ranges are subject to adjustment based on the unique characteristics and location (i.e. zip code) of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™ including ductwork. See more details
No Information
Pricing and specialist vary by location
Valid zip code not detected
Change your ZIP code for new results.
Please enter a valid zip code
Our
communicating high efficiency units Indoor and outdoor sensors allow the thermostat control to determine and communicate exactly how much heating or cooling, dehumidification or humidification and air flow are required to keep the home optimally comfortable.
must be installed with another communicating high efficiency unit. If you do not currently have a communicating high efficiency setup you will need one of the following communicating high efficiency components to pair with the XV18 TruComfort™ Variable Speed: Hyperion™ TAM9 Air Handler, XC 80 Gas Furnace, or XC 95M Furnace.

Cost Breakdown

  • Coil
    The coil, also known as an indoor coil or evaporator coil, is the part of your air conditioner or heat pump that regulates the temperature in your house all year long. The coil does this by absorbing the moisture and heat in your home. There can be no cold air without the evaporator coil.
    Included
  • Thermostat
    A thermostat is a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. A thermostat can either be standard or Wi-Fi connected, either of which is dependent on your individual needs.
    Included
  • Condenser Pad
    Your outdoor unit sits on top of waterproof/weatherproof condenser pad to provide a flat stable surface to keep your outdoor unit secure and in place for optimal performance. The condenser pad also raises your outdoor unit off the ground thus protecting it from moisture as well as pests and insects.
    Included
  • Whip
    Whips are wires in a weather proof casing for outdoor use. They are used to connect the 220 volt power to your outdoor unit, in some locations a licensed electrician is required.
    Included
  • Electrical Disconnect
    This service switch permits a service technician to work safely on equipment by turning off electrical power to the unit. The switch is typically on a building wall near the outdoor unit.
    Included
  • Flush existing refrigerant line set or install new line set
    Insulated copper piping which carries the refrigerant (produces cooling effect) from the outdoor unit to indoor unit. The insulation protects any condensation from leaking into your home.
    Included
  • Clean up after installation
    Included
  • Removal and disposal of old system
    Included
  • Install new system by local code
    Included
  • Reconnect to existing ductwork
    Connect to existing ductwork (conduits or passages used in heating, ventilation and air conditioning to deliver and remove air. Air ducts ensure acceptable indoor air quality as well as thermal comfort *)

    * Does not include any new ducts that may be needed for your specific home needs
    Included
  • Standard 1 (one) year Labor Warranty
    Included
  • 5 (five) year Equipment Parts Warranty (coil and compressor only)
    Included

An ideal combination of energy efficiency and noise reducing technology, the XV18 keeps your home cool while lowering energy costs.

  • Rated up to 18 SEER with 750 stages of comfort for ultimate climate control and max efficiency
  • Ultra quiet performance measured at 4 dB below competitor’s minimum
  • TruComfort™ technology automatically adjusts temperature while maintaining speeds to avoid temperature swings

More Details

ENERGY STAR® Qualified*

Overview

-

Trane TruComfort™

The Trane TruComfort™ systems give you precise comfort by running at the exact speed needed to keep your home comfortable. This allows the variable speed compressor, outdoor fan, and indoor fan to vary operating speed and BTU as the temperature outside changes, slowing down or speeding up gradually in as little as 1/10 of 1% increments to keep comfort within 1/2° of the thermostat setting.

Efficient performance

The XV18 air conditioner is one of the industry’s most efficient systems, with ratings up to 18 SEER. With Trane TruComfort™ technology, the variable speed air conditioning system automatically adjusts itself while maintaining constant and consistent speeds to avoid temperature swings.

ComfortLink II communicating capability

ComfortLink™ II communicating technology (available when matched with communicating indoor units) connects all of your key components so your system automatically, configures and calibrates for optimal performance and efficiency through the lifetime of your products.

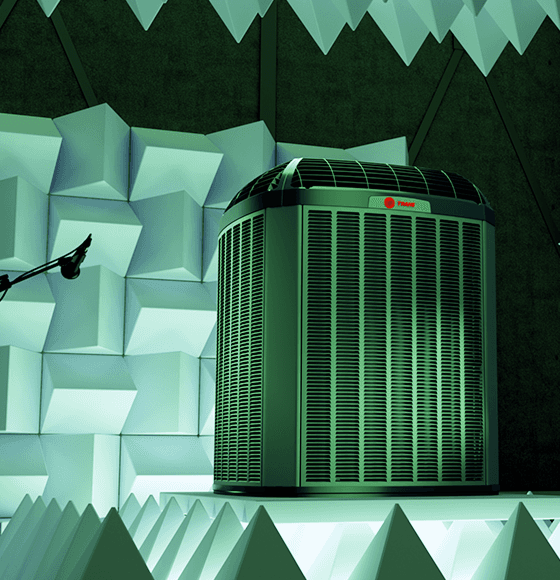

Durable, Quiet, and Economical

Rigorously tortured and tested for long-lasting durability, you can be sure this system will hold up to anything, without holding up your bank account. And with the quiet running fan, 4 dB below our competitor’s minimum, you can be sure you are getting a quiet air conditioner and the best all-around system for your home.

Cleaner, Healthier Indoor Air

Add Trane CleanEffects™ Air Cleaner to your system to filter the incoming air to eliminate dust, pollen, and other irritants for a cleaner, healthier, and more comfortable home.

Product Brochure

Specifications

-

XV18 variable speed air conditioner models (R410A refrigerant)

MODEL COOLING CAPACITY (BTUH) HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TTV8024A 24,000 41 33 30
4TTV8036A 36,000 41 33 30
4TTV8037A 37,000 41 37 34
4TTV8048A 48,000 41 37 34
4TTV8060A 60,000 45 37 34

Every Trane matched system is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The XV18 air conditioner includes:

  • ComfortLink™ II Communicating Capability and Unique Refrigerant Cooled Inverter Drive
  • Climatuff™ Variable Speed Compressor
  • Compressor Sound Insulator
  • All-aluminum Spine Fin™ coil
  • DuraTuff™ Rustproof Basepan
  • Integrated Fan System
  • Simplified Two-Wire Connection
  • Full-sided Louvered Panels
  • Powder-Paint Finish
  • Recognized as the Most Efficient of ENERGY STAR in 2019

Trane Warranty

Protect your XV18 TruComfort™ Variable Speed with one of our top of the line warranties

View Warranty
The majority of systems installed prior to 2006 are 10 SEER or lower. Potential energy savings may vary depending on your lifestyle, system settings, equipment maintenance, local climate, home construction and installation of equipment and duct system.

Contact a local Trane Comfort Specialist™

WANT TO SAVE ON A NEW SYSTEM?
NEED EMERGENCY REPAIRS?

WE CAN HELP

Let us know how we can help and the top-rated Trane Comfort Specialist™ in your area will contact you shortly.

By pressing the “Submit” button, I consent to receive a phone call about products and services from a Trane Comfort Specialist™ at the phone number(s) provided. I understand these calls may be generated using automated technology and my consent does not imply or require that a purchase be made.
  • Weather for

    Charlotte

    92°

    Clear Sky

Still have questions?

Here's what your dealer can do for you

  • Custom evaluation
  • Local rebates
  • Expert repairs
  • Upfront pricing

†This product meets ENERGY STAR requirements when appropriate coil components are used. Ask your contractor for details.

*PRICE RANGES

Price ranges shall apply to basic installation to include standard materials and service, which may vary by the type of system or unit selected. All price ranges are subject to adjustment based on the unique characteristics of the home. Any changes or modifications to Basic Installation agreed upon by Buyer will be an additional cost as negotiated by Buyer and the independent Trane Comfort Specialist™, including the cost of mechanical permits that may be required by local and state law. Price ranges do not include any taxes, now or hereafter enacted. Taxes will be added by your Trane Comfort Specialist™ to the sales price to comply with local and federal tax law.

Basic installation varies slightly based on the type of system, unit or accessory purchased.

AC Furnace & Air Handler Split and Packaged Systems: Materials & Services - Install new condenser pad, an A/C whip, with electrical disconnect switch, either flush existing refrigerant line set or install new line sets (determined by placement in home); includes the removing and hauling away of the old system or unit, installing new system or unit by local code, installing new thermostat, reconnecting to existing ductwork.

Mini-Split Systems: Materials & Services: Install new condenser pad, electrical wiring, either flush existing refrigerant lineset or install new line sets (determined by placement in home) and a remote control; includes the removing and hauling away of the old system or unit, installing new system by local code, connect electrical to new unit.

Accessory installation: Materials & Services - electrical wiring; includes the removing and hauling away of the old system, installing new system by local code, connect electrical to new unit.

Standard Warranty: Standard Labor (One (1) Year XR Series, Two (2) Years XL/XV Series) & Parts Warranty (5 Year Unregistered or 10 Year Registered). Longer warranty terms are available. Please contact your independent Trane Comfort Specialist™ for details.
