XR13

XR13
SEER:
The higher the SEER, the less fuel you’ll need to keep your home comfortable, the less you’ll spend on energy, and the lower your carbon footprint will be.
Up to 14.5
Nominal Sound:
The average sound level in decibels. The higher the number, the louder the unit. For example, a vacuum cleaner = 70.
75
Cooling Stages
Units with variable cooling stages have more precise temperature control and operate more efficiently than single stage units.
ONE
Energy Savings:
Yearly energy savings based on the ratings of a matched system. The majority of systems installed prior to 2006 are 10 SEER or lower.
42%

XR13 DESCRIPTION

Air Conditioner System

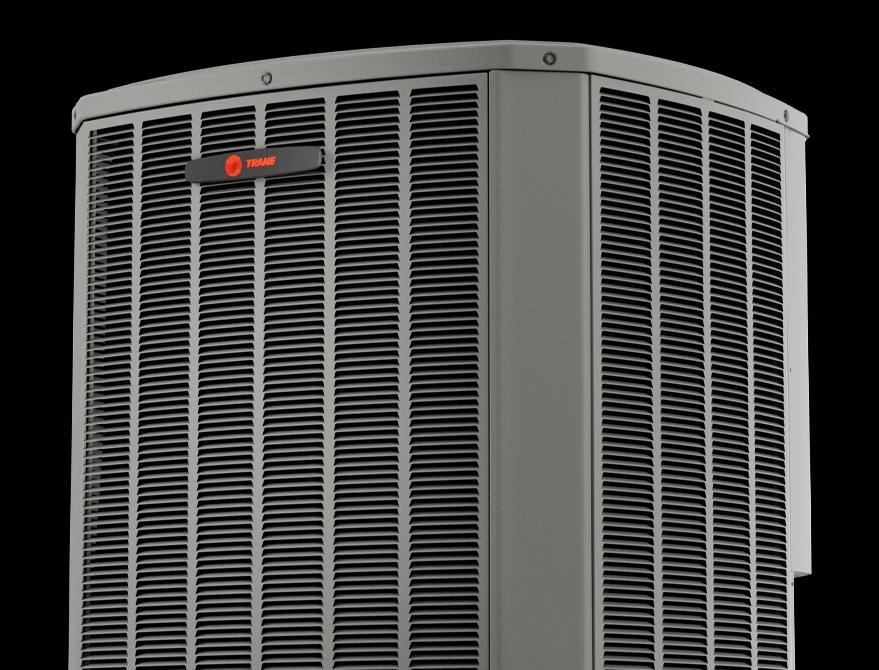

XR13

The XR13 air conditioner system comes with the reliability you expect from Trane and the comfort your home deserves. Built with you in mind, this home air conditioning system’s design helps deliver cool air to every room in your house, allowing you to relax comfortably.

More Details

Overview

-

Efficient and economical performance

The XR13 home air conditioner’s SEER rating of up to 14.50 gives you the right mix of cooling and energy efficiency, which may help lower your home cooling costs.

Durable construction

Materials and components for all home air conditioning systems are tested again and again for long-lasting performance and reliability.

Cleaner, healthier indoor air

Add Trane CleanEffects™ Air Cleaner to your air conditioner system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.

Product Brochure

Specifications

-

XR13 Home Air Conditioners (R-410A refrigerant)

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TTR3018 17,000 1.5 29 29 26
4TTR3024 23,000 2 29 29 26
4TTR3030 28,500 2.5 29 29 26
4TTR3036 34,500 3 29 33 30
4TTR3042 40,500 3.5 29 33 30
4TTR3043 40,500 3.5 29 37 34
4TTR3048 46,500 4 37 33 30
4TTR3049 46,500 4 29 37 34
4TTR3060 58,500 5 37 37 34

XR13 3-Phase Air Conditioners

MODEL COOLING CAPACITY (BTUH) NOMINAL TONS HEIGHT (IN.) WIDTH (IN.) DEPTH (IN.)
4TTA30346B3 36,000 3 29 33 30
4TTA30425D3 42,000 3.5 29 37 34
4TTA3048D3 48,000 4 29 37 34
4TTA3060D3 60,000 5 37 37 34
4TTA3036B4 36,000 3 29 33 30
4TTA3042D4 42,000 3.5 29 37 34
4TTA3060D4 48,000 4 29 37 34
4TTA3048D5 60,000 5 37 37 34

Every Trane air conditioner system is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on. The XR13 includes:

  • Climatuff™ compressor
  • Spine Fin™ outdoor coil
  • Full-side louvered panels protect your investment
  • Baked-on powder paint resists rust
  • Unique DuraTuff™ non-corrosive basepan
  • Quick-Sess cabinet with full coil protection
  • Sound insulator (on select models)
Air conditioner banner

Trane Warranty

Protect your XR13 with one of our top of the line warranties

View Warranty
The majority of systems installed prior to 2006 are 10 SEER or lower. Potential energy savings may vary depending on your lifestyle, system settings, equipment maintenance, local climate, home construction and installation of equipment and duct system.
