Air Handling Units
BENEFITS & FEATURES
Designed to optimize your HVAC system
Trane air handlers can help HVAC systems achieve higher energy efficiency and indoor air quality while reducing maintenance requirements – adding life to buildings and improving the lives of people within them. From the most straightforward needs to wide-ranging demands for air cleaning, dehumidification and energy savings, there’s a Trane air handling unit to deliver everything your project requires.
Product Models
Trane Air Handling Unit Models

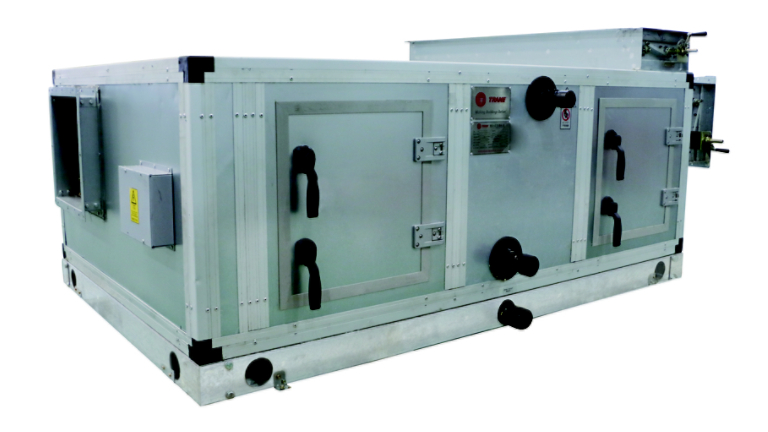

Customized AHU – CLCP
- Air flow range: 2,000~120,000 CMH
- Double skin, 50mm
- Best casing performance
- Eurovent Certificate and AHRI 1350 Certificate
- Customizable features and sizes for customers
- Suitable for Industrial applications

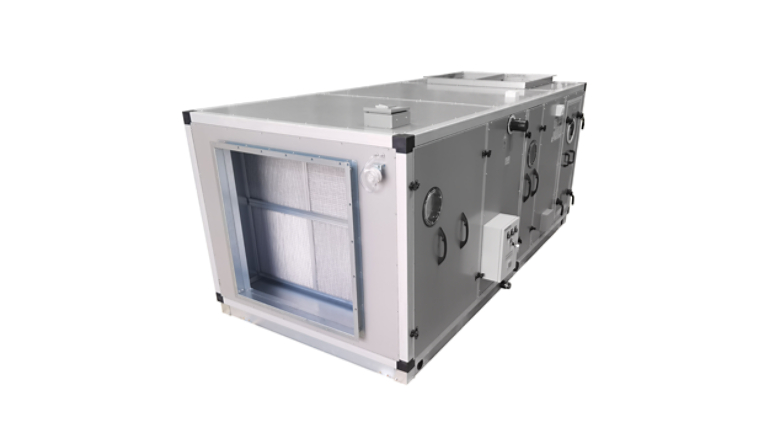

Customized AHU – CLCA
- Air flow range: 2,000~100,000 CMH
- Double skin, 25mm/50mm
- Excellent casing performance
- Eurovent Certificate and AHRI 1350 Certificate
- Customizable configurations and sizes for customers
- Including heat recovery options
Catalog AHU – LPCQ
- Air flow range: 2,000~38,000 CMH
- Double skin, 25mm/50mm
- Compact unit size for small footprint
- Rich functions such as filtration, sterilization, cooling, heating, and humidification

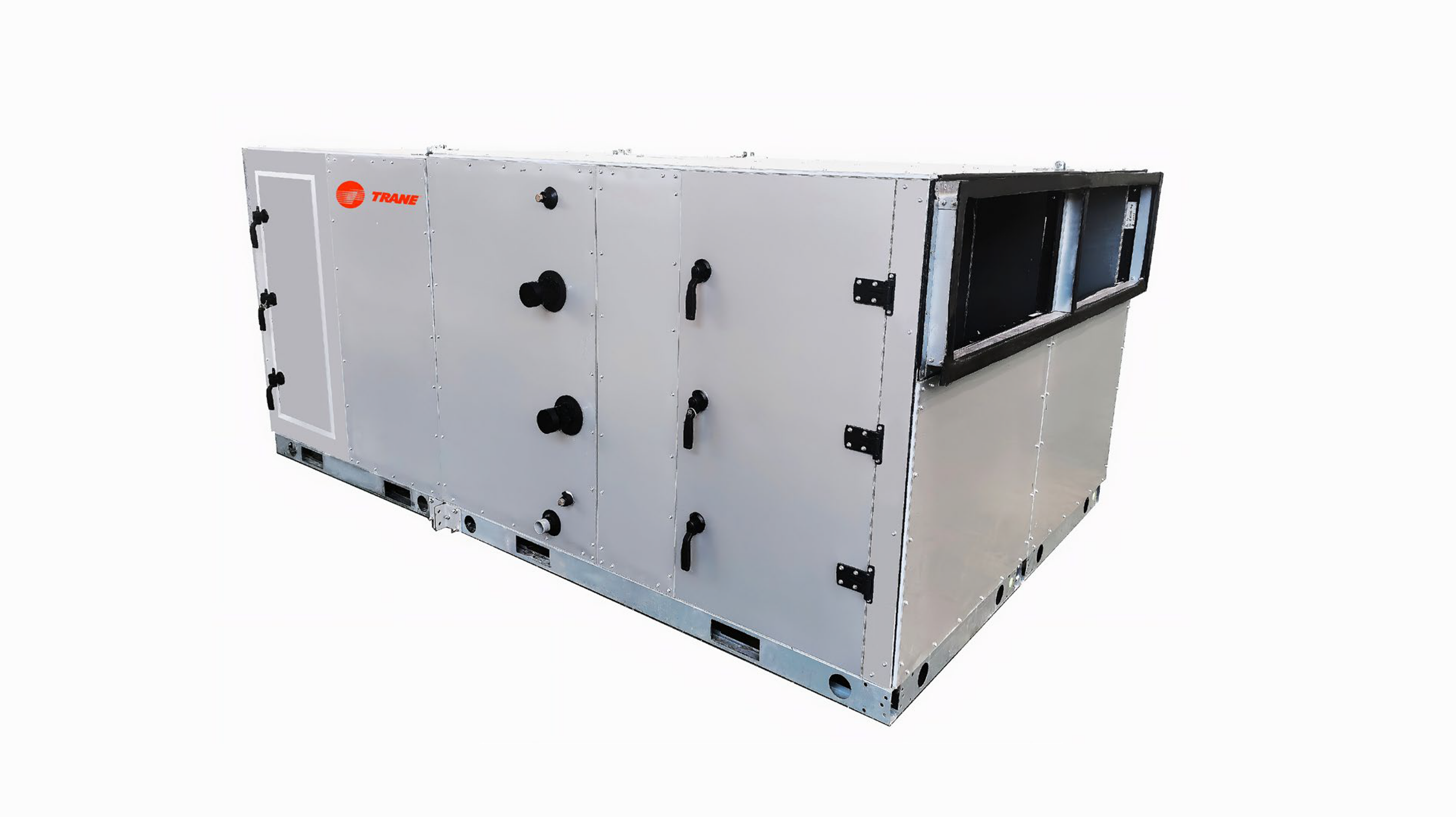

Magic Cube AHU – CLCM
- Air flow range: 6,000~41,500 CMH
- Double skin, 50mm
- Excellent casing performance
- AHRI 1350 Certificate
- Customizable configurations and sizes for customers
- Small width of a single module, easy to assemble on job site

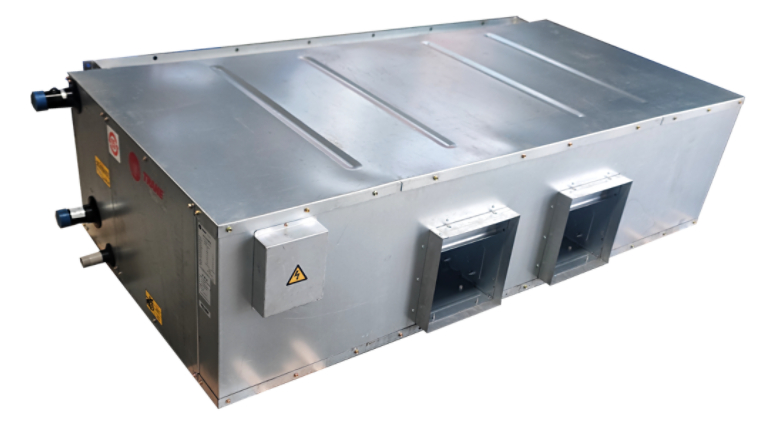

Ceiling AHU – LWHA
- Air flow range: 1,500~15,000 CMH
- Both single skin and double skin
- Ultra thin design
- Optimized coil for Earthwise condition
- Rich functions such as filtration, sterilization, cooling, heating, and humidification

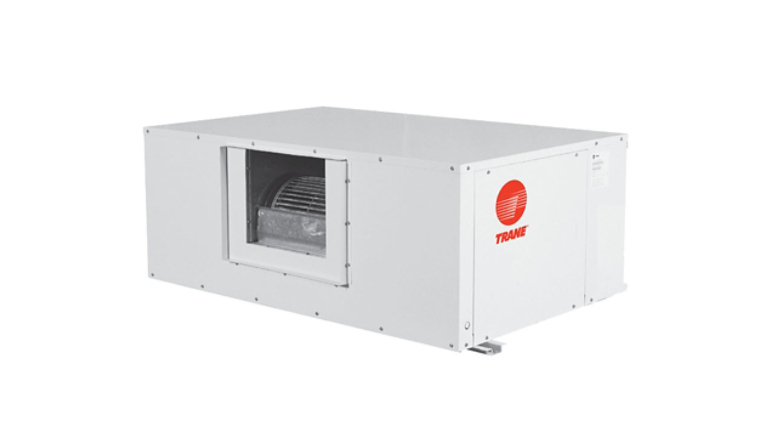

Catalog AHU (Single Skin)
- Air flow range: 3,400~13,600 CMH (Horizontal), 10,200~34,000 CMH (Vertical)
- Compact unit size for small footprint
- Rich functions such as filtration, cooling, heating, and starter panel

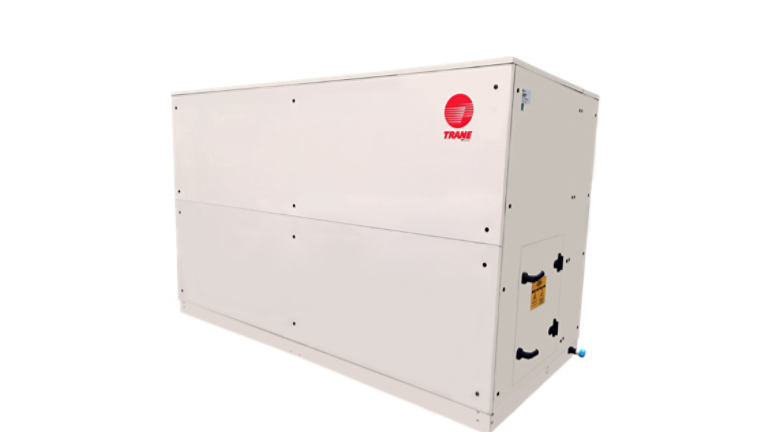

Catalog AHU (Double Skin)
- Air flow range: 3,400~13,600 CMH (Horizontal), 13,090~30,600 CMH (Vertical)
- Compact unit size for small footprint
- Rich functions such as filtration, cooling, heating, and starter panel
Product Models
AL-KO Air Handling Unit Models

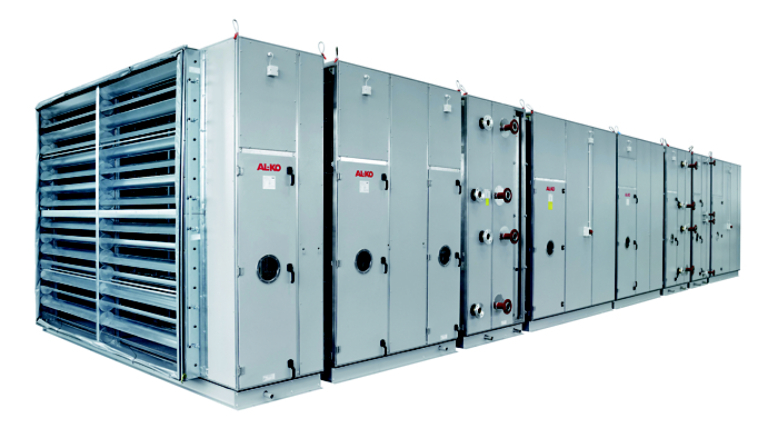

AT4-7
- Air flow range: 20,000~300,000 CMH
- Double skin, 70mm
- High-strength frame structure
- The optimized 70mm thick "sandwich" panel structure enhances thermal insulation and minimizes thermal bridging
- The insulation is made of fire-retardant rock wool material
- Conforms to DIN 4102 standards
- Fire rating reaches Class A1
- Easy assembly and disassembly

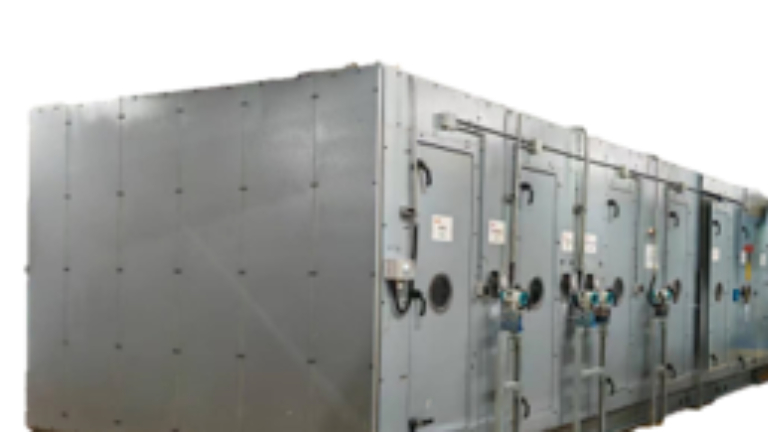

AT4-6 plus
- Air flow range: 2,000~180,000CMH
- Double skin, 60mm
- PU panel fireproof class: B1
- Designed and manufactured according to EN1886/RLT standards
- AL-KO China plant is certified by Germany TÜV (ISO9001), ICAS (ISO14001, ISO45001)
- Excellent casing performance: D1, L1, T1, TB1, F9 (<0.1%)

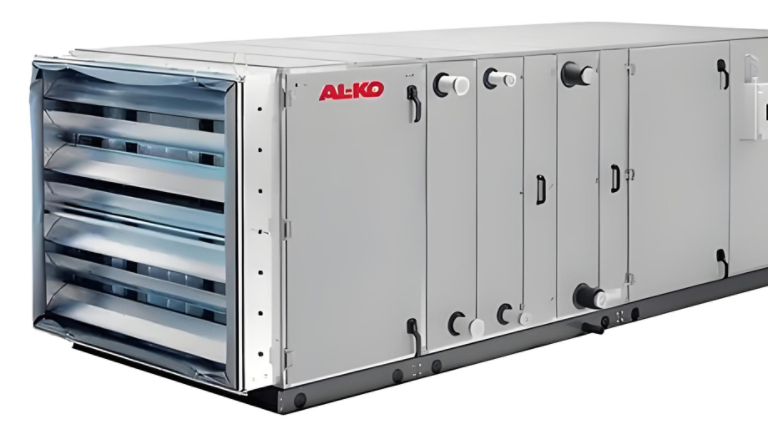

AT4-T
- Air flow range: 2,000~38,000CMH
- Double skin, 47mm
- Designed and manufactured according to EN1886, DIN1946, and RLT standards
- 330 modular standard sizes provide flexible choices
- Eurovent certification
- VDI6022 certification from the German Association of Engineers
- RLT certification from the German Air Conditioning Manufacturers Association

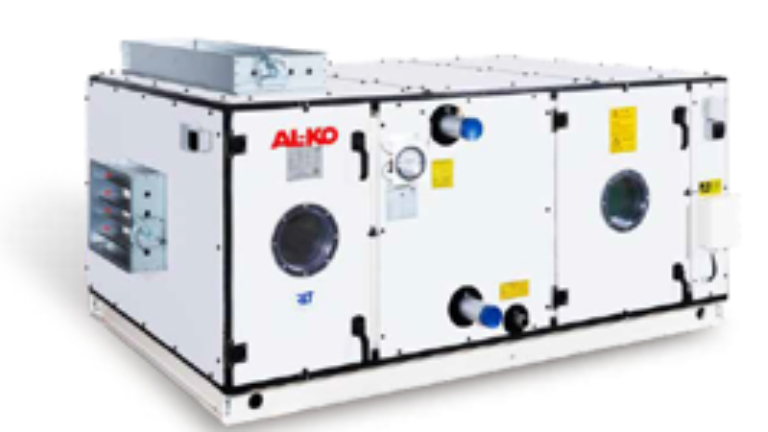

AKM
- Air flow range: 1,500~100,000CMH
- Double skin, 25, 50mm
- Reinforced fiberglass frame with detachable panels
- AHRI 410 coil performance certified
- AHRI 1350 casing performance certified
- Screws are fixed externally for easy disassembly
- Overall mechanical strength of the box reaches D1 level
- Air leakage rate of the box body reaches L1 level
