- A single, high-capacity coil enhances zone comfort and efficiency
- Central four-pipe hydronic distribution provides simultaneous cooling and heating capability year-round
- Directs the flow of hot or cold water to a thermal area based on changing needs
- Self-contained controller, preprogrammed with sequence of operation
- Butterfly valves, with 0% leakage, wired back to the controller
- Area branches only require two pipes
- 105°F or lower hot water
Hydronic Branch Conductor
-
Introduces load-responsive zone comfort management
Each Conductor directs the flow of hot or cold water to a thermal area.
Adapts to changing heating and cooling loads, area by area, as needed throughout the day.
Utilizing milder hot water supply temperature enables steadier supply-air temperatures. No more cycling on/off with very hot air.
-
Enhances heat pump systems’ sustainability benefits
Delivers a 35% efficiency gain by heating adequately with milder, 105°F or lower hot water.
Prevents system energy waste by stopping adjacent zones from fighting with each other over temperature set points.
Integrates easily with BAS for enhanced energy management.
-
Reduces installation cost and complexity
Retrofits repurpose existing branch cooling supply and return water piping for both heating and cooling distribution.
In new construction, 50% fewer coils, valves, piping and joints reduce cost and labor.
Logic for distributing hot or cold fluids into zones is built into the Conductor controls, saving time for technicians.
Related Products
-
-

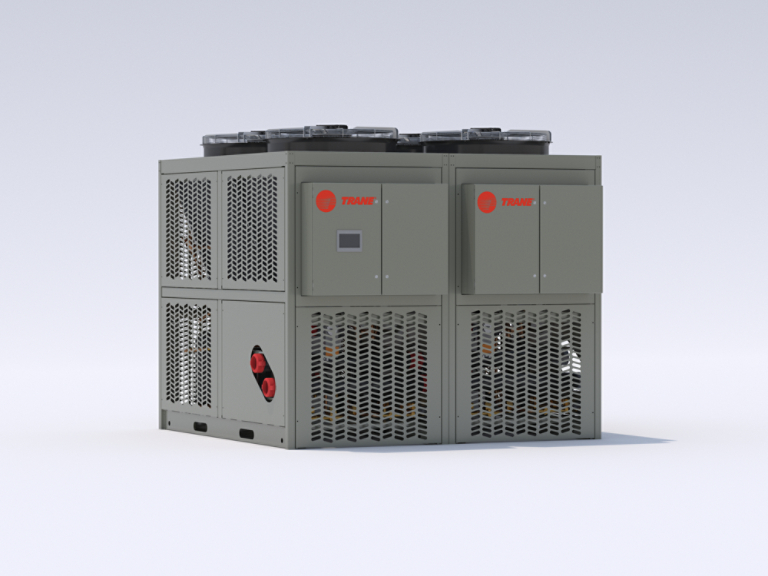

Thermafit® Modular Air-to-Water Heat Pump Model AXM
