VRF Outdoor Unit

VRF Outdoor Unit

VRF Outdoor Unit

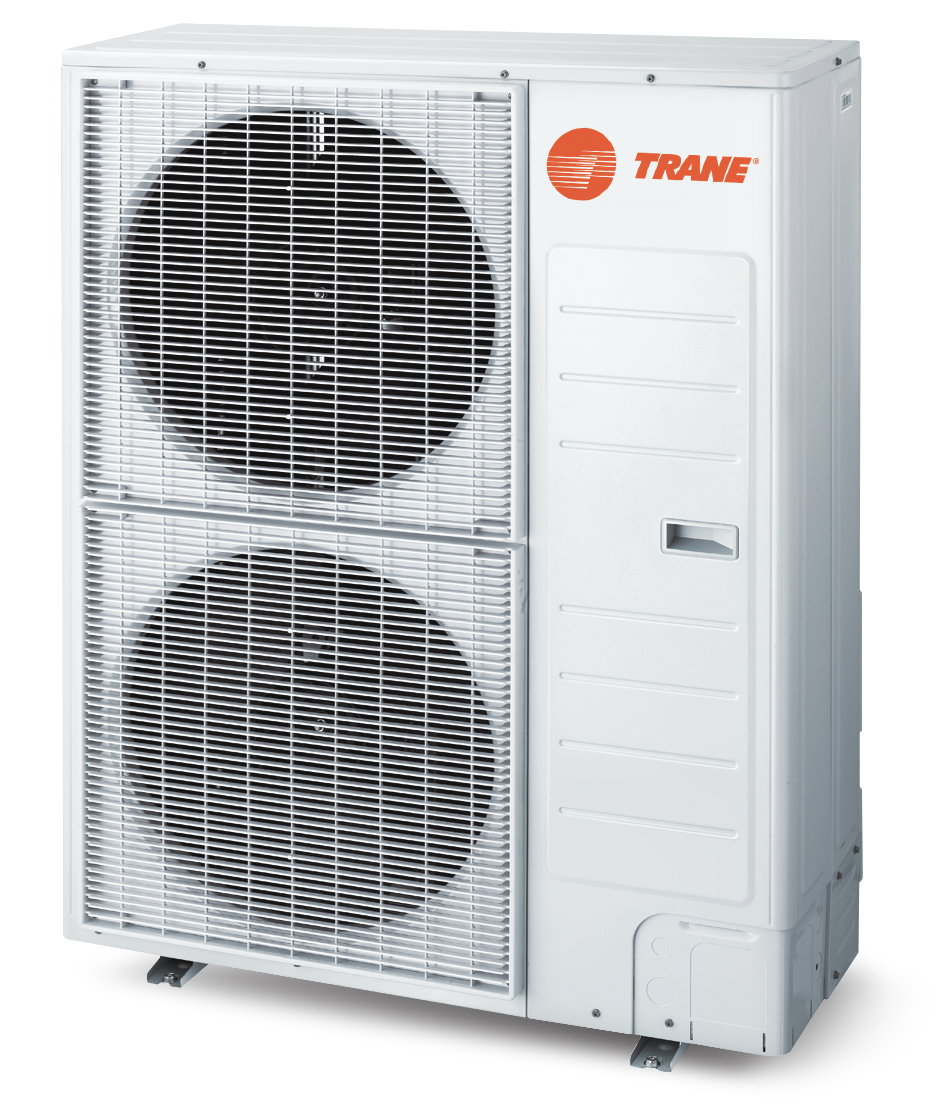

The 4TVH unit is installed outside and works along with the indoor products to deliver energy efficient comfort to the home. This unit is the result of in-depth knowledge and superior technology.

Product Overview

Product Specifications

R-410A refrigerant

Capacity 36-53 MBH

Cooling efficiency: up to 18.5 SEER

Heating efficiency: up to 9.4 HSPF

Variable-speed inverter technology

Matched with multiple VRF indoor units

Use VRF Select for system validation


4TVH - Single Phase VRF Heat Pump Outdoor Models


Model Heating Capacity (BTUH) Cooling Capacity (BTUH) EER SEER HSPF
4TVH0036B 42000 38000 11.2 16 8.6
4TVH0048B 54000 48000 10.2 16 9.4
4TVH0053B 61000 53000 9.5 15.5 8.6

Warranty

TRANE 4TVH VRF REGISTERED LIMITED WARRANTY DETAILS

12 month from the initial startup or 18 months from the date of shipment on defects

10 year Qualified Limited Warranty on internal functional parts The system is designed using an approved application tool (VRF Select) The system is installed by a contractor who has successfully completed a Company factory training class Customer gathers a VRF Commissioning Package containing ((a) Final ""as built"" VRF Select Program output file (b) commissioning report from the Company's Technician Utility Tool (c) Before and after pictures of test gauge for the pressure and vacuum test (d) VRF Installation Class Certification of Completion issued by the Company

Ask your dealer for full warranty information at time of purchase. Warranties are for residential use only. Some exclusions may apply.

Customer submits the VRF Commissioning Package within 60 days of start-up to the following email address vrfwarrantyupdocs@irco.com

Register within 60 days of installation to activate warranty. Residential use only. Some exclusions may apply. Call 1-800-554-6413 or Register Online.
